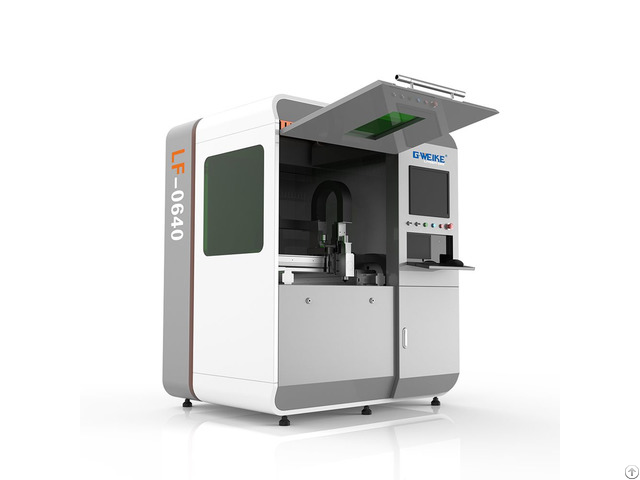

500w 750w 1000w Precision Fiber Laser Cutting Machine - China

3rd Generation Aviation Aluminum Gantry It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.

After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Safety and No Pollution With a fully enclosed design.

The observation window adopts an European CE standard laser protective glass.

The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.

Dual Rail and Dual Driver Design To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.

Without manual operation, it can focus automatically Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.

The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision G.

WEIKE fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the positioning accuracy of the machine tool can be 0.008mm and the cutting acceleration is 0.5G.

The working life is more than 10 years.

Technical Parameters: Machine model LF0640 Laser power 500W 750W 1000W(Optional) Working area 600mmx400mm Repeat positioning accuracy ±0.008mm Maximum speed 40m/min Maximum acceleration 0.5G Transmission mode Grinding precision screw drive Specified voltage and frequency 220V/50Hz/60Hz/60A
