35% Brix Mini Tomato Paste Production Line Output 220 Kg H - China

The mini tomato paste production line is suitable for tomato paste concentrated products.

It uses ripe red tomatoes as raw materials and is made through crushing, beating, peeling, concentration, canning, and sterilization.

Mini Tomato Paste Production Line Parameter:

1 - Raw material: Fresh tomato

2 - Final products.

Tomato sauce and ketchup(Mixed with itric acid, starch and sugar)

3 - Brix: 32-36%

4 - Input: 5% brix in fresh tomato, there needs 1 500kg/h fresh tomato

5 - Output: 220 kg/h concentrated tomato paste with 35% brix

6 - Packing method: Tin packing and PVC(400g, 450g, 800g, 850g)

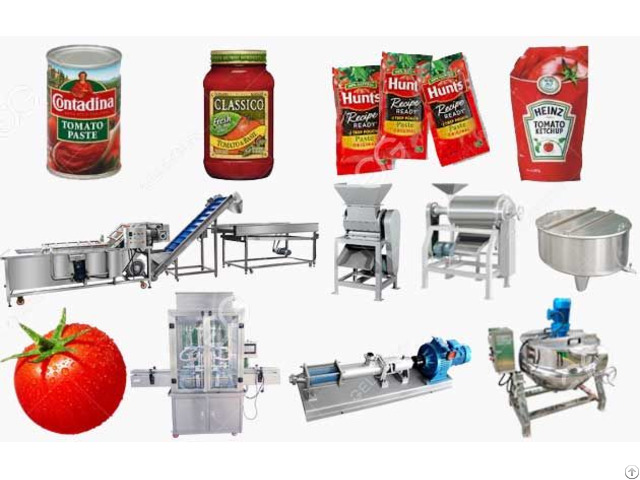

7 - Semiautomatic production line Tomato Paste Processing Machine Working Flow:

Tomato→Bubble Washing→Crushing→Pulp Making→Storage Tank → Screw Pump→Concentrating and mixing→Screw pump→Paste Filling→Capping→Steri lization→Labelling.

Air bubble washing machine: Under pressure of air bubble and water spraying to clean those tomatoes.

Crushing machine: To crush tomatoes for the preparation of pulp making; Pulp making machine: The machine in the form of single-channel, automatic separation of tomato pulp and residue; Temporary storage tank: The tank is made of high-quality SUS304 stainless steel is used for stroage the tomato pulp temporarily; Cooking Pot: Used to concentrate tomato pulp, evaporate excess water； Tomato paste filling machine: Filling tomato sauce/ketchup into

different size of bottles, tins.

Tin Bottle Capping Labeling Machine: After filling the tomato sauce into bottle and tine, you need you capping them and labeling your logo on the bobttle surface.

Pressurization Machine: Pasteurize the sachet in 80 degree water.
