Small Scale 20 30tpd Rice Milling Plant - China

FOTMA concentrates on the developing and manufacturing of the food and oil machine product, drawing food machines altogether over 100 specifications and models.

We have strong ability in the engineering design, installation and services.

The variety and pertinency of products meets the customer's characteristic request well, and we provide more advantages and successful opportunity for customers, strengthen our competitiveness in business.

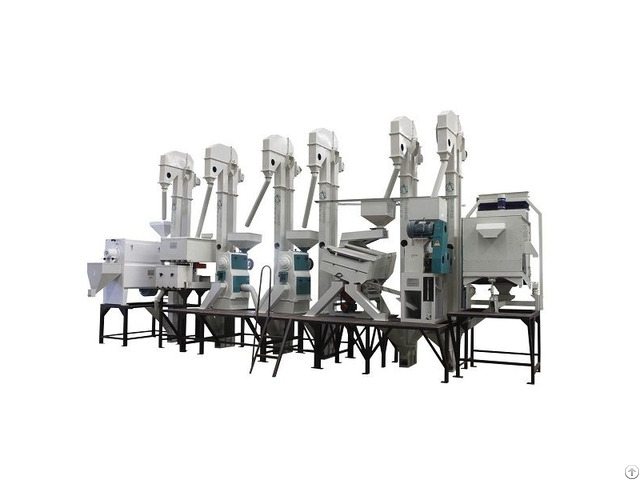

FOTMA 20-30t/d Small Rice Milling Plant is suitable for small scale rice processing business, which can process about 1.5ton paddy and produce about 1000kgs white rice per hour.

The main machines of this small rice milling plant are combined cleaner(pre-cleaner and destoner), paddy husker, paddy separator, rice whitener(rice polisher), rice grader and other necessary rice milling machines.

The silky polisher, rice color sorter and packing scale are also available and optional.

The necessary machines for 20-30t/d small sale rice milling plant:

1 unit TZQY/QSX75/65 combined cleaner 1 unit MLGT20B Husker

1 unit MGCZ100×5 Paddy Separator

1 unit MNMF15B Rice Whitener

1 unit MJP63×3 Rice Grader

5 units LDT110/26 Elevators

1 set Control Cabinet

1 set dust/husk/bran collection system and installation materials Capacity: 850-1300kg/h

Power Required: 40KW

Overall Dimensions(LxWxH): 8000×4000×6000mm Features:

1 - Automatic operation from the paddy loading to finished white rice;

2 - Easy operating, only 1-2 persons can operate this plant(one load raw paddy, another one pack rice);

3 - Integrated appearance design, more convenient on installation and minimized space;

4 - Equipped with control cabinet, more convenient on operation;

5 - The packing scale is optional, with auto weighing & filling & sealing functions, only manually grip the open mouth of bag;

6 - The silky water polisher and color sorter are optional, to produce high quality rice.
