Good Quality Advance Technology Oil Extraction Machine - China

1 - Introduction of oil extraction machine

(1) Function: Leaching system is an oil extraction through soaking or spraying pre-pressed cake by a certain organic solvent.

The principle of this part is the different solubility of solvent.

(2) Use range: Solvent extraction fits for pre-press extraction of high-oil-content materials and direct once time extraction of low-oil-content materials.

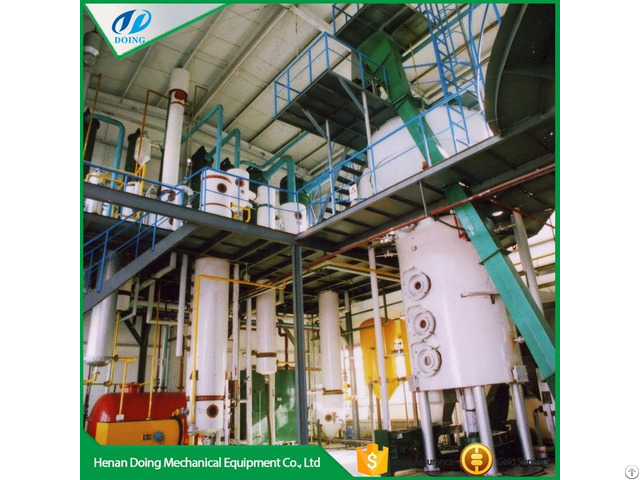

(3) Main parts: The extraction series includes rotary extractor, toaster, 1st evaporator, 2nd evaporator, stripping tower, condenser, etc.

2 - Main parts of oil extraction machine

(1) Solvent pumps: continuously spray solvent to the rotary-type extractor

(2).

Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent(form miscella).

After processing, you can get wet meal and miscella (mixed oil).

(3).

DTDC: usd to separate the solvent from the wet meal.

(4).

Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st, and then add 10% saline water to it.

The phospholipid and impurities in the miscella will react with the saline wter, at last the reactant precipitate, reaching the goal of purifying.

(5).

Miscella tank 2nd: the purified miscella will be pumped into it.

(6).

Miscella stripping: it will remove the remaining solvent in miscella.

And the solvent will be discharged to condenser for recycling.

(7).

condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

3 - Main Process of oil extraction machine

(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor.

The material will extracted by the solvent or mix oil.

After this step, we will get meal and mix oil.

(2) Meal is sent to toaster.

Through the toaster, the solvent in the meal will separate from the meal.

The solvent goes to condenser and is recycled to rotary extraction.

(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.

(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated.

From the stripping tower, we can get crude oil and solvent.

The solvent is sent to condenser and is recycled to rotary extraction.

4 .

Advantages oil extraction machine

(1) High oil yield, obvious economic benefit .

(2) Residual oil rate in the dry meal .

(3) Improving the quality of the meal .

(4) Low processing cost, high labor productivity.

Company Contact:

• Posted By: Henan Doing Mechanical Equipment Co., Ltd

• Phone: 86-371-56771823

• Address: R1408, Building 9, NO.133, Yaozhai Road, Zhengzhou , Henan , China

• Email:

• Website: https://www.doinggroup.com

• Business Description: Henan Doing Mechanical Equipment Co., ltd located in Henan Province, is a main producer of oil equipment in China and a unit exempt from quality examination.

  Our company has a research institution which develops new products with our experiment basis and an integrative joint-stock production company of oil and electromechanical engineering, production and installation.

  We continue to introduce foreign talents, renew products and take the leading position in this field.

  Our products have passed ISO9001 international quality system management cortication.

  Our company has got the title of "bank grade AAA enterprise".

  Our company covers 99000m2 and has fixed assets of RMB50 million.

  We have 480 staff members, of whom 6 senior engineers, 22 engineers and more than 70 installation workers with rich experience.

  We have had good cooperation with Beijing Science and Technology University, Sian Oil Science Research Institution, Zhengzhou Industry College and other authorized research agencies.

  We use CAD design system and our special use software to design works.

  We supply comprehensive and highly utilized vegetable oil plant with general design and also special designs, the first-class technology and service.

  We also can supply various levels of technology designs and services according to customer's requirements.

  We insist on the tenet of "quality first, customer superior", supplying customers with perfect technology consultation and high-quality after-sales services.

  We have advanced processing equipment and scientific management systems.

  Our products sell well in 28 provinces and cities in China and are exported to central Asian countries, like Uzbekistan, Kyrgyzstan, Kazakhstan and other more than 10 countries and areas, like Canada, Chile, Argentina, Ethiopia, Zambia, Nigeria, Russia and Turkey.

  We also have offices in Urumqi, Xinjiang, Uzbekistan and other countries and regions.



  Business scopes:

  1-2000tpd pre-treatment and pressing workshop,

  30-2000tpd cooking oil solvent extraction production line,

  1-600 tpd refining workshop,

  palm oil/palm kernel oil mill plant

  And we offer both production line and single machines.
