Fully Automatic Rice Mill Plant 100 Tpd - China

The Rice milling is the process that helps in removal of hulls and bran from paddy grains to produce polished rice.

Rice has been one of man's most important foods.

Today, this unique grain helps sustain two-thirds of the world's population.

It is life for thousands of millions of people.

It is deeply embedded in the cultural heritage of their societies.

Now our FOTMA rice milling machines should help you produce higher quality rice with competitive price! We can supply complete rice milling plant with capacity from 20TPD to 500TPD different capacity.

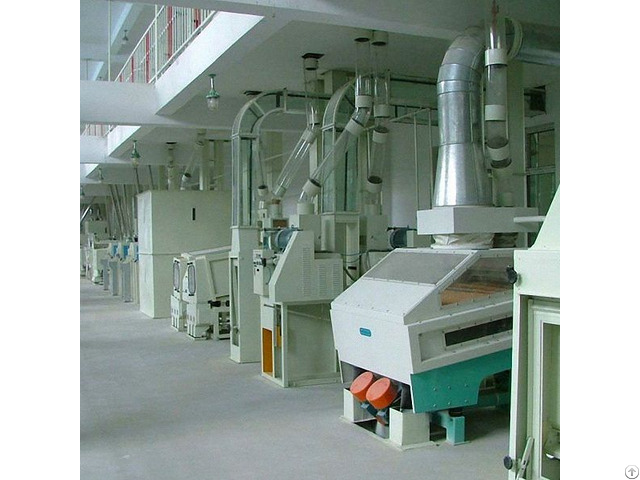

FOTMA provide 100Ton/Day fully automatic rice mill production line.

The whole set of equipment includes Grain Cleaning, Paddy Husker and Separator, Rice Whitener and Grader, Dust/Husk/Bran Suction System, Electronic Control and Auxiliary Part, Rice Polisher, Color Sorter and Packing Scale.

It usually is formed by linear arrangement.

From paddy cleaning to rice packing, the complete operation is automatically controlled.

It can produce white rice 4-4.5 tons per hour.

Meanwhile, it also can be designed according to requirement of different users.

It applies to processing plants in urban and rural areas, farm, grain supply station, and granary and grain shop.

The 100t/day fully automatic rice mill plant includes the following main machines: 1 unit TCQY100 Cylindrical Pre-cleaner(optional)

1 unit TQLZ125 Vibrating Cleaner

1 unit TQSX125 Destoner

1 unit MLGQ51C Pneumatic Rice Huller

1 unit MGCZ46×20×2 Double Body Paddy Separator

3 units MNMX25 Rice Whiteners

2 units MJP120×4 Rice Grader

2 units MPGW22 Water Polisher

1 unit FM7 Rice Color Sorter

1 unit DCS-50S Packing Machine with double feeding

4 units LDT180 Bucket Elevators

14 units W6 Low Speed Bucket Elevators

1 set Control Cabinet 1 set dust/husk/bran collection system and installation materials

Capacity: 4-4.5t/h

Power Required: 338.7KW

Overall Dimensions(L×W×H): 28000×8000×9000mm The optional machines for 100t/d fully automatic rice mill plant:

Thickness grader, Length Grader, Rice Husk Hammer Mill, Bag type dust collector or Pulse dust collector, Vertical type rice whiteners, Magnetic separator, Flow Scale, Rice Hull Separator, etc.

The features of 100t/day fully automatic rice mill plant:

1 - This integrated rice milling line can be used to process both long-grain rice and short-grain rice(round rice), suitable to produce both white rice and parboiled rice, high output rate, low broken rate;

2 - Multi-pass rice whiteners will bring high precision rice, more suitable for commercial rice; The vertical type rice whitener is optional.

3 - Equipped with pre-cleaner, vibration cleaner and de-stoner, more fruitful on impurities and stones removing.

4 - Equipped with water polisher, can make the rice more shining and glossy;

5 - It use negative pressure to remove dust, collect husk and bran, effectual and environmentally-friendly.

The bag type dust collector or pulse dust collector are optional, suitable for customers with higher requirements for environmental protection;

6 - Having prefect technological flow and complete devices for cleaning, stone removing, hulling, rice milling, white rice grading, polishing, color sorting, length selection, automatic weighing and packing.

7 - Having high automation degree and realizing continuous automatic operation from paddy feeding to finished rice packing.

8 - Having various matching specifications and meeting the requirements of different users.
