5xzc 15dxa Air Screen Cleaner Seed Sorting Machinery Agriculture Grain Selecting Equpment - China

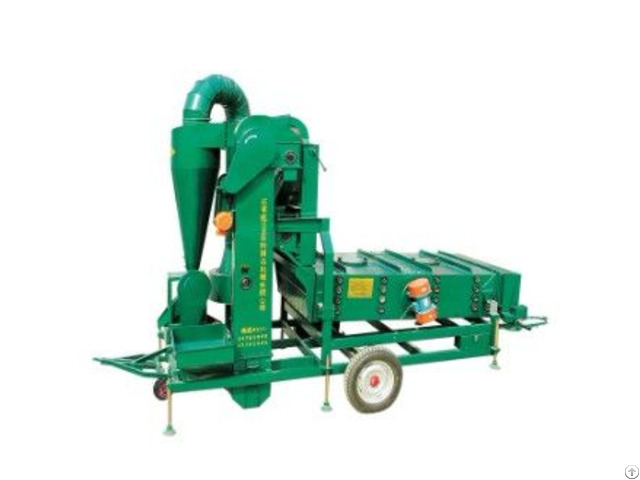

5XZC-15DXA Air-screen cleaner The 5XZC-15DXA Air-screener is the largest unit of the 5XZC series range.

Fitted with 4 layers sieve.

With a very wide range of sieves available, this machine is very versatile and can be used for seed cleaning of almost all crops.

The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current.

As impurities are light, they are sucked into the cyclone duster, while seed is heavy and is transferred into a vibrating screen.

The vibrating screen has Four layers sieves with five outlet which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.

Features

1 - The machine works with 4 sieve levels, The sieve are cleaned on ball frames, with rubber balls.

2 - The rubber ball sifting structure complies with international standards, Sanli’s patented rubber ball is highly elastic, endures and long lasting.

3 - The sieves are tightly fit in the machine by a clamp-locking system for quick changing of the sieves and thorough cleaning of the machine.

4 - The volume of air is variable and adjusted from minimum to maximum by a controlling handle, assuring very accurate cleaning and sorting of seeds.

The blower has a very stable and reproducible output.

5 - Transparent inspection windows for easy inspection and clean out.

6 - The machine has a very low noise level.

7 - Very easy and thorough cleaning of the machine and no contamination risk.

8 - No wooden frames on the sieves where seeds can hide.

9 - With cyclone duster, Environmentally friendly model.

Technical parameters

Model 5XZC-15DXA

Capacity

(Base one wheat seed) 10000 Kg/h

Size (L×W×H) 4640×2350×3560mm

Sieve size(L×W) 2400×1500mm

Sieve Layers 4

Weight 2030 Kg

Power supply 380V/50Hz/3-Phase

Total power 10.5 kW

Selection rate ≥98%

Clarity ≥97%

Broken rate ≤0.2%

Impurities rate ≤3%

Remarks With Cyclone duster
