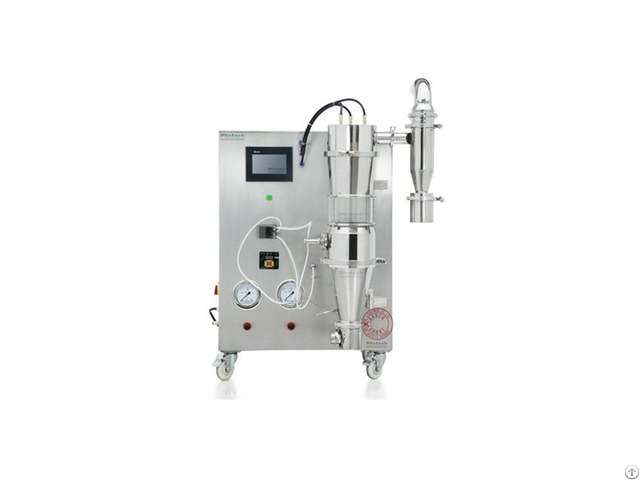

Yc 1800 Lab Low Temperature Spray Dryer - China

Low Temperature Spray Dryer: The Complete Buying Guide As a professional lab spray dryer in China, Pilotech has been in spray dryer design and manufacturing industry for over 15 years.

In 2008, Pilotech developed China’s first low-temperature spray dryer, suitable for heat-sensitive materials.

For ordinary spray dryers, the inlet air temperature is above 180 °C and the outlet temperature is above 100 °C.

At these temperatures, many heat-sensitive materials will experience a change in properties, structure, and color, or even poor dissolution after drying, among other problems.

If you have heat-sensitive materials, you need YC-1800 low-temperature spray dryer.

We have two types of low-temperature spray dryers: vacuum system and non-vacuum system.

The minimum inlet air temperature of non-vacuum low-temperature is 105 °C, and vacuum ones is 50 °C.

Materials like enzyme preparations, probiotics, heat-sensitive polymer materials, proteins, natural product extracts and sugar-containing samples are often heat- sensitive and can be spray dried using a low-temperature spray dryer equipment.

As water boils at 100 °C under normal pressure and spray drying only needs a second.

Ordinary spray dryers have a relatively high inlet air temperature, but Pilotech low-temperature spray dryers are designed under negative pressure and achieve an inlet air temperature of low as 105 °C.

Our spray dryers also achieve rapid drying and prevent property or color change of materials.

YC-1800 low-temperature spray dryers can be fitted with a fluidized bed drying module (optional) if you need it.

A low cost increase will give you one with fluidized bed drying.

If your lab needs both low-temperature and high-temperature spray drying, don’t worry! YC-1800 low temperature spray dryers have a maximum inlet air temperature of 200 °C.

You won’t have to buy an ordinary spray dryer machine anymore.

If you choose our low-temperature spray dryers, we have all the parts including the air compressor designed for you.

Just make sure your lab has electricity.

All the parameters of our low-temperature spray dryers can be set through the touch screen panel.

It will be easy and convenient for you to adjust the parameters during the experiment.

The drying chamber, cyclone separator, and collection bottle are all clamped, making it convenient to install, disassemble, and clean.

The whole cleaning process takes no more than 10 minutes.

As we know the stable operation of spray dryers is important to you, our crucial parts, including touch screen, PLC, air compressor, blower, and heater, are from world-renowned brands.

Pilotech YC-1800 low-temperature spray dryers work quietly with noise below 60 db and won’t affect your working environment.

In order to send you best low-temperature spray dryer, we will carry out a series of strict test before shipment.

First, the equipment will run for 72 hours without processing any materials.

After that, we will conduct the spray drying test with the extracting solution of Chinese medicine.

The shipment will be arranged after we ensure that the equipment delivers high recovery rate even with the materials that are the most difficult to dry.

If you are looking for the right low-temperature spray dryer and the best price for your applications and needs! Get a quote now, we will reply you within 8 hours.
