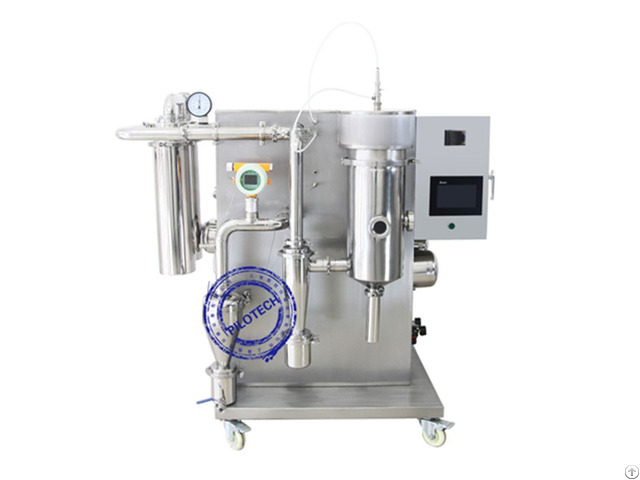

Yc 015a Lab Inert Loop Spray Dryer - China

YC-015A mini Inert loop spray dryer principle To safely spray dry inflammable solvents, a new operating principle is employed which uses a combination of the Spray Dryer YC-015 and the Inert Loop to provide a closed loop circulation under inert conditions.

The absence of oxygen prevents the formation of a ignitable mixture.

At the same time, the solvent contained in the gas stream is cooled and consequently condensed.

The regenerated flow is then returned again to the spray dryer.

YC-015A mini Inert loop spray dryer Safety YC-015A mini Inert loop spray dryer features good safety and easy operations as it adopts closed cycle of nitrogen (or other inert gas), a safe gas, to keep the entire system in a closed state, and on-line monitoring of oxygen concentration such that the system would power off automatically and alarm when the oxygen concentration has reached 2.5% (which can be preset by the user as needed).

The combination of closed nitrogen cycle and full solvent recovery allows treatment of flammable and toxic solvents and drying of readily oxidizable material.

In addition, the low boiling points of organic solvents allow low temperature drying of the material subject to heat denaturation.

YC-015A mini Inert loop spray dryer Solution to difficulty to dry organic solvents While organic solvents are generally flammable and explosive, an explosion-proof, Inert loop spray dryer allows the materials to circulate in a closed drying system and prevents the organic solvent gas from coming in contact with the outside air, thus ensuring safe operations.

Solution to difficulty to dry oxydizable material Taking advantage of the antioxidant property of inert gas, this technology allows the materials to be dried and transmitted in an antioxidant environment in the closed circulation system isolated from oxygen, which ensures quality of the drying process for readily oxydizable material.

Solution to toxic gases pollution from raw materials While some materials or solvents may produce toxic gases when vaporized, an mini spray dryer with closed cycle of inert gas would keep these toxic gases in the closed system and allow them to be collected in subsequent processes, thus reducing environmental pollution, which is favorable for environmental protection.

The following solvents have been tested and can be used without reservation: Methanol Ethanol Toluene Hexane Acetone Ethylacetate Dichloromethane* * additional DLSB recommended YC-015A mini Inert loop spray dryer Areas of application YC-015A mini Inert loop spray dryer can be used in a wide range of applications where the production of a free-flowing powder sample is required.

This technique has successfully processed materials in the following areas: Beverages Flavours & Colourings Milk & Egg Products Plant & Vegetable Extracts Pharmaceuticals Heat Sensitive Materials Plastics Polymers and Resins Perfumes Ceramics & Advanced Materials Soaps & Detergents Blood Dyestuffs Foodstuffs Adhesives Oxides Textiles Bones, Teeth & Tooth Amalgam and many others Contact me: Tel: 0086-21- 51082915

Fax: 0086-21-51069385

Wechat: 8615261820185

WhatsApp: 8615261820185
