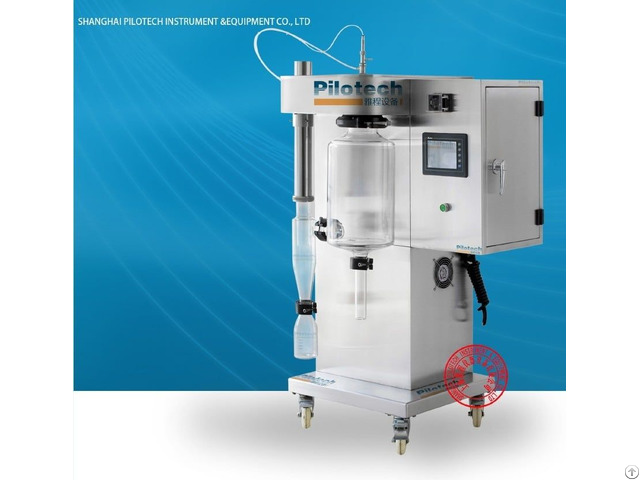

Yc 015 Lab Mini Spray Dryer - China

Mini Spray Dryer YC-015 The world leading R&D solution for Spray Drying The Mini Spray Dryer YC-015 (lab spray dryer) is the result of 15 years continuous development, is your choice for the quick and gentle drying to powder of liquid material.

The impressive features of the Spray Dryer include its efficient performance with very short set-up times, an effective integrated nozzle cleaning mechanism and a high degree of flexibility thanks to the different cylinder geometries.

The system was designed to be stand by a keyboard, conducted by a colorful crystal screen of touch guidance mode, and allowed two modes of run: Automatic-mode, and Eye-monitored mode for the purpose of easily controlling experimental process .

Controls & Functionality Easy to use Color Touch Screen, Fast setup and cleaning times Scale up to pilot or industrial scale possible.

Visible process due to glass assembly Adjustable particle size (1 – 25 microns) Two Fluid Nozzle with SUS316L stainless steel The stainless steel spray assembly consists of an inner tube for the liquid sample leading to a small diameter jet.

An outer tube directs compressed air to the nozzle.

All units are supplied with 0.7mm jets, other sizes are available as accessories.

The spray assembly incorporates an automatic de-blocking device that prevents the jet nozzle from becoming blocked, the de-blocking needle is activated by an integral compressor.

De-blocker is sometimes necessary with materials which may solidify or when large particles in suspension cause blockages in the jet.

Preparation convenience The minimum of materiel only needs 20-30 ml, which is convenient for dealing with small amount of sample, and it’s maximum capacity can up to 2000ml/H as well as the dealing with vast material is also very rapidly.

Temperature protection The heater has an extreme high temperature when experiment finished, which needs air blower to continue working in order to reduce the inside temperature and ensure the safety of equipment, YC-015 mini spray dryer ( lab spray dryer) can control air blower running automatically, even the operator wants to turn off the air blower, the system would prevent the operator until the temperature of system reduce to the default security state of system ; Borosilicate glass or SUS 304 stainless steel Spray chamber, cyclone separator, collector are all made of Borosilicate glass which can resist strong acid/alkali, high temperature.

It can work in a no-pollution and stable environment, and the whole process can be inspected.

And we can provide SUS 304 stainless steel parts .

All the spare parts are easy to install and clean.

Air compressor built-in Oil free compressor built-in with cushion technique, lower noise and convenient to move the dryer.

Compressed air container made from the SUS 304 stainless steel to avoid vapor corrosive damage； Trusted by the users Over 1, 500 domestic customers of top universities, enterprises and research institutes use our mini spray dryer.

And exported to more than 40 countries & regions such as the United States, Italy, South Korea, Mexico, Singapore, Canada, Malaysia, Chile and Russia etc.
