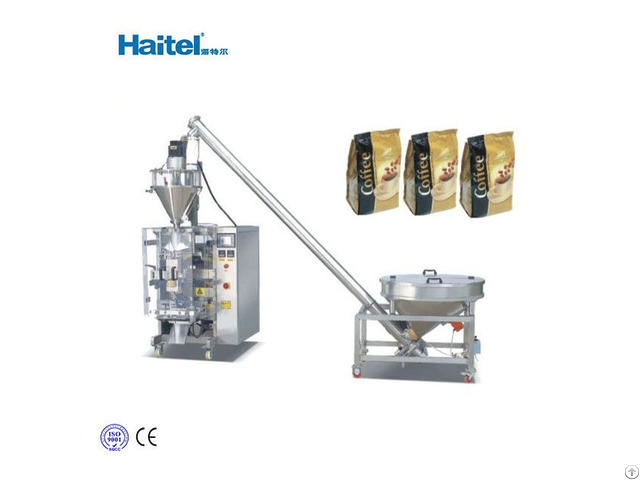

Competitive Priced Vertical Detergent Coffee Powder Packing Machine - China

1) Characteristics: 1 - Film drawing down system controlled by servo motor.

2 - Automatic film rectifying deviation function.

3 - Various alarm system to reduce waste.

4 - It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

5 - The way of bag making: The machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.

Application: It is suitable for packing of several of granule, powder, such as sugar, salt, coffee, etc.

Main technical parameters: Model HTL-D420 Packing speed About 30-60 bags/min.

It is according to quality of wrapping film and materials.

Accuracy ≤1.5% Bag size (L) 80-300 mm; (W)80-180 mm Maximum film width 420 mm Filling range 50-1000 g Film thickness 0.04-0.09 mm Packing material Thermal composite materials, such as BOPP/CPP, PET/AL/PE Air consumption 0.8 MPa, 0.4 m³/min Total power 5 KW Voltage (V) Four wires, three phases, 380V, 50Hz.

Air compressor Not less than 1 CBM Total height 2528 mm Gross weight 900 kg Each machine characteristics and technical parameters: 1 - HTL-D420 Vertical automatic packaging machine Features Film drawing down system controlled by servo motor.

Automatic film rectifying deviation function; Various alarm system to reduce waste; It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery when it equips with feeding and measuring equipment; The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.

Technical parameter Items Content Capacity 60 bag/min Bag size (L)80-350mm (W)100-250mm Bag type Pillow-type bag, standing-bevel bag, punch bag Filling range 150-2000ML Max film width Max 520mm Film thickness 0.04-0.09mm Air consumption 0.8Mps 0.4m3/min Main power/voltage 2.5KW/ 220V 50Hz Dimension L1500*W1140*H1540mm Weight 680kg 2 - Vertical forming-filling-sealing machine Descriptive abstract: This type can do measuring and filling work.

Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder, solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.

Main features: The hopper could be washed easily without tools.

Servo motor drive screw.

Stainless steel structure.

Include handwheel of adjustable height.

Replacing the auger parts, it is suitable for material from super thin powder to granule.

Descriptive abstract: The Machine can convey sorts of material.

Combined with the package-machine of our company, it can do material situation tracing.

Also it can be used separately.

Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.

Main features: 1) Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.

2) Hopper is adjustable and vibrational which make material to be flowing easily.

It is good to material.

3) Hopper is separate from twisting shaft.

Structure is reasonable and easily loading and unloading.

4) Characteristic dustproof, bearing won't be polluted by the dust and powder.

5) To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversely, storing materials at the bottom of hopper pipe, and taking out the whole screw.

4 - Finished products conveyor Features: The machine can send the packed finished bag to after-package detecting device or packing platform.

Specifications: Lifting height 0.8-1.5 mm Feeding speed 30 m/minute Dimension (L*W*H) 2110×340×500 mm Voltage 220V/45W Pre-sale 1 - confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.

2 - Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.

After-sale 1 - When equipments arrive in clients factory, send engineers there for installation and ensure customers know how to operate the machine.

2 - In order to improve our products, we keep in close contact with customers to know their feedbacks and suggestions.

3 - From the date of the buyer receive the machines, free warrant for 12 months
