Shanghai Full Automatic Chocolate Egg Roll Wafer Stick Snack Food Making Machine - China

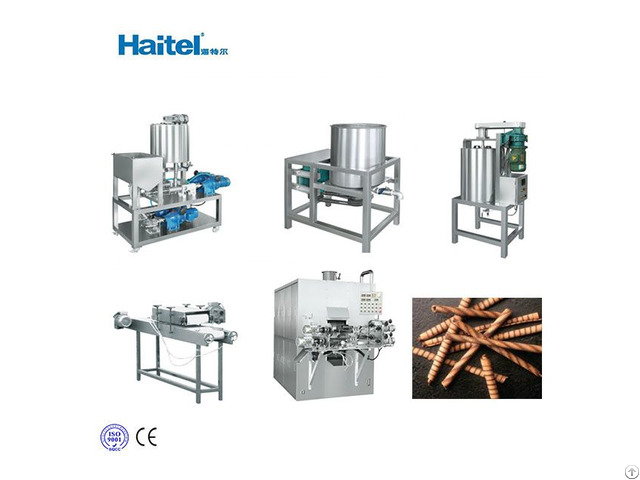

1 - Introduction: Egg roll production unit is composed of storing barrels, transmission liquid machines, liquid barrels, color machine, 360 ° rotating auto-baked round, shovel device and the automatic roll feed cutting and electrical control cabinet, it uses far infrared baking, can produce two-color or multi-color hollow egg roll.

2 - Product processing: First step, to make flour, starch, oil, eggs, sugar and other raw materials in the mixer where mixing, and then, take mixing liquid into storing barrel of baking machine, mixing materials through filter transfer into storing barrel continuously by transmission pump and automatic laying-off, the mixing materials is baked on the rotating baking round, and finished color processing.

There is automatic bade egg rolls in the bottom baking round, it can continuous automatic shovel egg roll, the egg roll materials is fallen on the transferring belt of egg roll forming machine, and forming hollow and cylinder shape by belt and roll stick, at last, cutter cuts egg roll into the specifications of the length by customers.

3 - Characteristics: Stainless steel shell, the sanitary conditions are good.

4 - Specification Model HTL-2200 Heating power 35kw Motor 1 0.8kw Motor II 0.8kw Motor III 180w Motor IV 125w Egg Roll Baking Machine dimension(L*W*H) 2200×1000×2300mm Egg Roll Forming Machine dimension(L*W*H) 1600×850×1000mm Total weight 2600kg Output(hollow egg roll) 30-40kg/hr Pre-sale 1 - confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.

2 - Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.

After-sale 1 - When equipments arrive in clients factory, send engineers there for installation and ensure customers know how to operate the machine.

2 - In order to improve our products, we keep in close contact with customers to know their feedbacks and suggestions.

3 - From the date of the buyer receive the machines, free warrant for 12 months
