Yc 018 Lab Pilot Scale Spray Dryer - China

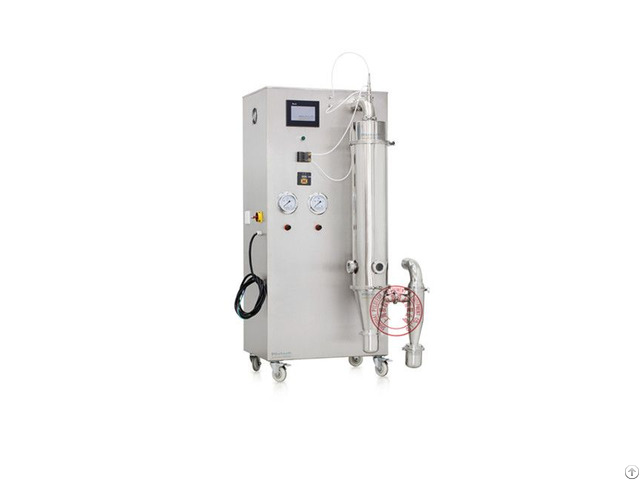

Pilotech YC-018 lab spray dryer is capable of processing 3500ML per hour, and it only needs a minimum amount of 100ML materials to perform one experiment.

Is suitable both for laboratory use and the pilot plant use.

The inlet air temperature for the YC-018 laboratory spray dryer ranges from 110 to 350 °C.

As the range is relatively wide, it is suitable for drying the spray of most materials.

After the drying process, the particle size ranges from 1 to 100 microns, so it is suitable for the spray drying of ceramics and catalysts.

Flexible switch between small and high processing capacities The minimum and maximum capacities of YC-018 lab spray dryer are respectively 50ML and 4L/H.

Being capable of continuous production, it is a perfect combination of minor, small and pilot scale.

Large particle processing ability Size of particles dried with conventional lab spray dryers is generally 1-25μm, but they cannot meet requirements of processing of catalyst and other large particles.

With YC-018, you can get particles with a maximum size of 100μm and it is the first choice for processing of catalyst and other large particles sizing 60-100μm.

Perfect combination of low temperature and ultra-high temperature With maximum inlet air temperature reaching 350°C, it can meet ultra-high temperature drying requirements of ceramics and other materials; with minimum inlet air temperature being 105°C, it is especially suitable for spray drying of traditional Chinese medicine, extracts of natural substances and other materials with sugar content.

No material will adhere to the wall during drying and materials are featured with excellent fluidityafter drying.

Contact me: Tel: 0086-21- 51082915

Fax: 0086-21-51069385

Wechat: +8615261820185

WhatsApp: 8615261820185

Company Contact:

• Posted By: Shanghai Pilotech Instrument & Equipment Co., Ltd

• Phone: +8615261820185

• Address: No.86 Yuxiu Rd. Songjiang District, Shanghai,P.R.C 201600, shanghai , shanghai , China

• Email:

• Website: http://www.shpilotech.com

• Business Description: Pilotech is the market leader of spray dryer, spray granulator, multifunctional extracting tank, and ultra-high temperature sterilizer.

  Around the world, there are more than 3500 scientific institutions and companies that are using our equipment and complete services.
