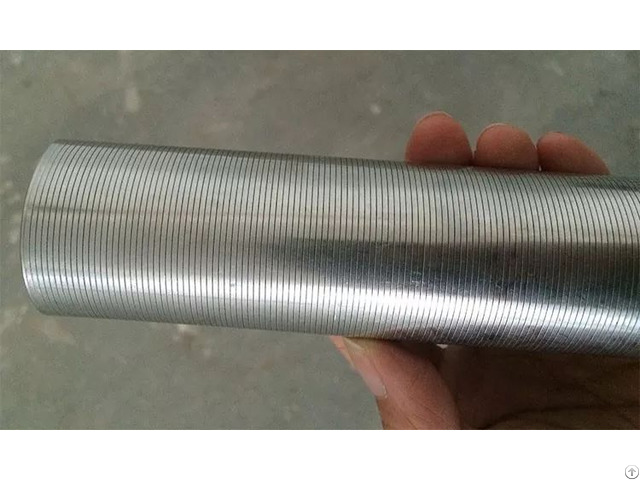

Brief introduction of Diatomite Candle Filters wedge wire screen elements

Function: liquid filtering / liquid solid separation

Efficiency: High

Open area: large open area

Cleaning way: Back flush, easy to clean Application: filtration of beer, wine, beverages in general, syrups, gelatin, liquid food components Materail: Stainless steel wedge wire

Profile wire: wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00 - Support rods: square shape, Width(mm): 2.00; Height(mm): 2.30 3.00; Diameter(mm): 33mm( 25.40mm- 220mm) Length(mm): 1000mm, (Less than 1500mm long) End connection: Commen fittings, NPT, BSP end fittings, calculate price seperately Packaging

1 step: PVC net

2 step: Wooden case Delivery

15-30 Days after depositwedge wire candle, beer candles 'FEATURES: Stainless steel 316L candle filter with 25 microns slot size candle filter elements.

Wire diameter: 1.5x2mm, 2x3mm, 3x5mm; Backwashable welded wedge wire FOTI tubes

Low heel volume

Easy to clean smooth filtration surface

Outside to inside flow

No moving parts

Candle filter elements are used in beer filters and Duplex filters.

Due to their large filter area and high differential pressure resistance, these filter elements are used for the filtration of liquids.

They consist of resistant, stainless-steel wire mesh with a filter fineness of 10 to 150 microns.

As an option, a magnetic insert can be installed into the candle filter to retain finer particles of metal.
