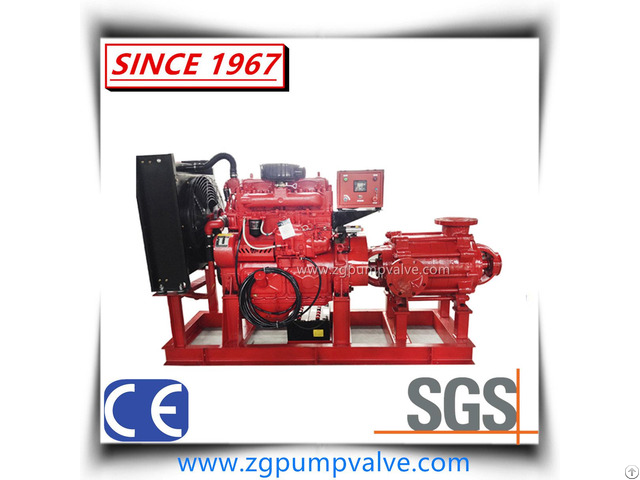

Diesel Engine Driven Multi Stage Fire Fighting Pump - China

Brief introduction:

Diesel multistage pump set is composed of diesel engine, pump, base and control cabinet.

It is a product integrating information processing technology, industrial automation control technology and mechanical technology.

According to different requirements of customers, the unit can realize automatic start, automatic stop, automatic speed regulation, automatic alarm, automatic charging, parameter detection, automatic inspection, remote control and other functions.

Pump working range:

Flow rate: Q=3~846m3/h

Total head: H=50~1450m

Speed: n=1450rpm/2950rpm

S.

g: γ ≤1.15

Temperature: T=-20 ~160ºC

Pump diameter: 80, 100, 125, 150, 200, 250mm

Operating range of diesel engine:

Environment temperature: T=-25~55ºC

Relative humidity : <85%

The degree of longitudinal inclination at work : <10°

No conductive dust and damage to metal insulation corrosion gas and explosion risk.

If the ambient humidity is more than 20ºC or the relative humidity is more than 30% or the altitude is more than 1000 meters, the diesel engine power should be corrected.

The correction coefficient is selected according to the data table provided by the diesel engine manufacturer

Structure:

1 - A dvanced hydraulic models with high efficiency and wide performance range.

2 - Smooth operation and low noise.

Both packing seal and mechanical seal are available.

3 - Completely sealed shaft which is non-contact with fluid.

The pump material can be changed to pump corrosive fluids.

D(F) stands for a pump which is suitable for corrosive fluids, but its performance and is totally the same to D series.
