Standard Apg Clamping Machine - China

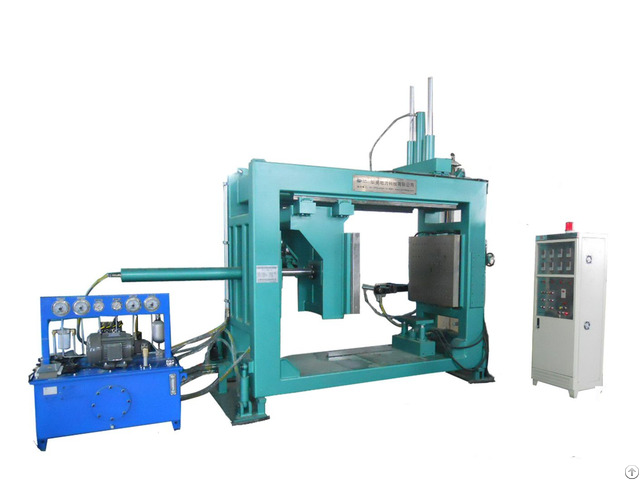

1, Description of APG casting machine

APG is a special technology for casting high voltage electric components from epoxy resin.

It can reduce the casting duration by comparing to conventional vacuum casting method.

This series belongs to standard APG clamping machine can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SF6 gas-insulated indoor switch disconnector, etc.

The upper and lower core distance can be customized, foundation pit is necessary if lower core travel distance above 500mm.

2, Main technical data of APG casting machine

Model No.

HAPG-860 HAPG-880 HAGP-1000 HAPG-1200

clamp plate size 600*800mm 800*800mm 1000*1000mm 1200*1000mm

clamp force 210KN 210KN 210KN 240KN

min max clamp plate stroke 240*1250mm 240*1250mm 240*1450mm 240*1450mm

upper&lower core puller stroke 760*350mm 760*350mm 760*450mm 760*450mm

heating power 12kw 16kw 24kw 24kw

hydraulic power pack 5.5kw 5.5kw 5.5kw 5.5kw

horizontal tilting angle 0-5 0-5 0-5 0-5

mould load weight 2T 2T 3T 3T

machine weight 4500KG 4800KG 5300KG 5300KG

machine dimension 3100*1300*2500mm 3100*1300*2500mm 3400*1600*2800mm 3400*1600*2800mm 3, Main configuration of APG casting machine

3.1 PLC: Mitsubishi

3.2 switching power supply: Taiwan mingwei

3.3 inverter: Taiwan delta

3.4 intermediate relay: omron

Company Contact:

• Posted By: jiangshan huaao electricity technology co.,ltd

• Phone: +865704888766

• Address: No.6-3 ruzhu road , sidu town, jiangshan city, zhejiang province, China, jiangshan , zhejiang , China

• Email:

• Business Description: We are specialized in producing APG equipment, mold, winding machine and providing epoxy resin product design, mold design and Production process training.

  Since the establishment, our company has provided comprehensive equipment and process training services to customers in more than 30 countries and regions

  We can customize the suitable equipment according to your different requirements
