Sinopak Active Power Filter - China

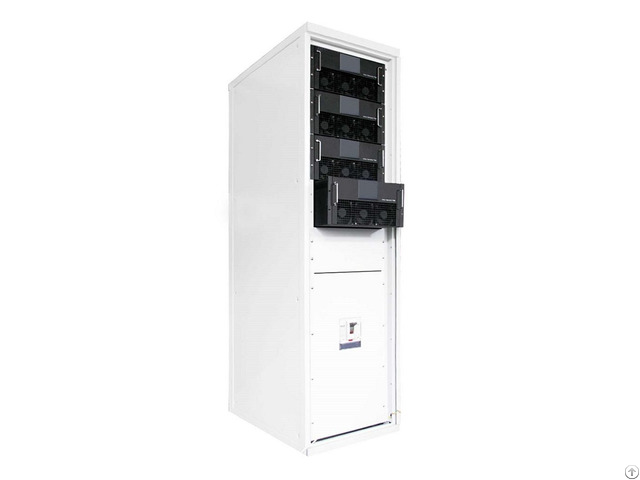

Sinopak Active Power Filter Active power filter (APF) is designed to filter the harmonics injected by non-linear loads in power networks.

It can analyze the line current harmonics drawn by the loads and generate a compensation current dynamically at the opposite phase angle, thereby "neutralizing" the harmonic currents.

Features 1 - Based on 3-Level topology circuit 2 - Modular design for a shorter delivery cycle and easy maintenance.

3 - Rack-mounted or wall-mounted design which can be easily combined and installed as needed.

4 - It is possible to compensate the 2nd~51st harmonics, or select a specific order of harmonics to compensate separately.

5 - Flexible compensation modes: Harmonic compensation, Reactive power compensation, Three phase imbalance compensation 6 - Harmonic +Reactive power +Imbalance 7 - Remote communication interfaces, with real-time monitoring being achieved via PC machines.

8 - A full automatic detection runs during the whole compensation process, and should it be restarted, self-diagnosis will function; then after the fault is removed, it will be automatically put into use.

9 - Free of harmonic resonance.

10 - A user-friendly human-machine interface is configured to operate, and display system's real-time parameters like voltage/current waveforms, active power, reactive power, apparent power, power factor, harmonics, etc.

11 - Intelligent control circuit with perfect protection functions (against overvoltage, under voltage, over-heating, over current, etc.

) Technical Specifications

Items Module capacity: 25A/35A, 50A/60A, 75A/100A Power supply voltage: 400V (-43%~+14%) Power supply frequency: 50/60Hz (Range: 45~63Hz) Wiring method: 3P3W/3P4W Harmonic spectrum: 2nd~50th Harmonic setting: All harmonic contents can be selected simultaneously Efficiency: Up to 98% Filter performance: THDi<5% Neutral filtering capacity: Three times of rated current Response time: <15ms Reactive time: <50microsecond


Resonance protection: Yes

Cooling mode: Forced air cooling Operation mode: Harmonic compensation(FFT analysis, instantaneous reactive power), Reactive power compensation (-1~+1), Three phase imbalance compensation Switching frequency: 20kHz

Power loss: <3% Communication interface: RS485 (Modbus RTU), TCP/IP (Ethernet) Digital I/O: 4DI/6DO Alarm events: Yes

Monitoring: Via centralized monitoring PQ viewer Mounting type: Rack/Wall mounted Protection level: IP20 Altitude: 1500m, if >1500m, the power decreases by 1% every 100m.

Operation temperature: -25degree~+45 degree

Relative humidity: 5%~95%, non-condensing Installation environment: Indoor use

Dimension W*D*H(mm) And net weight: 25A/35S: 440*470*150 18KG 50A/60A: 440*590*190 35KG 75A/100A: 440*600*230 36KG

Compliance with Standards: IEEE 519, IEC 61000-3-6, ERG5/4
