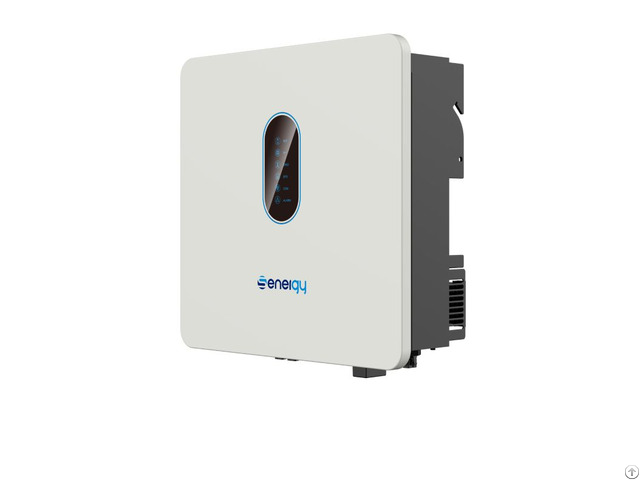

Se 4 6 5 6kac - China

Features Max Charge/Discharge efficiency 94%

Convenient to retrofit existing grid-connected systems increase

the proportion of spontaneous use

With BMS system to ensure high battery life

Natural cooling design

Compatible with lead-acid batteries and lithium battery energy

Model SE 4K6AC SE 5KAC SE 6KAC

Efficiency

Max.

efficiency (Max.

charge/discharge) 94.0%

Input (BAT)

Compatible battery type Lithium-ion/Lead-acid

Nominal battery voltage 48V

Battery voltage range 40V-60V

Max.

charge/discharge current 100A/100A 100A/100A 120A/120A

Max.

charge/discharge power 5000W/5000W 5000W/5000W 6000W/6000W

Lithium battery charge curve Self-adaption to BMS

Output (Grid)

Nominal AC output power 4600W 5000W 6000W

Max.

AC output apparent power 4600VA 5500VA 6000VA

Max.

AC output power (PF=1) 4600W 5500W 6000W

Max.

AC output current 22A 25A 27.2A

Rated AC voltage 220V

AC voltage range 150V-300V (Adjustable)

Rated grid frequency 50Hz/60Hz

AC frequency range 45Hz-55Hz/55Hz-65Hz (Adjustable)

Grid connection Single phase

Power factor > 0.99 @rated power (Adjustable 0.8 LD -0.8 LG)

THDI <3% (Rated Power)

Output (Back up)

Nominal output voltage 230V

Nominal output frequency 50Hz/60Hz

Nominal output power 4600W 5000W 5000W

Nominal output current 20A 21.7A 21.7A

Transfer time 10ms(typ), 20ms (max)

THDV <3% @100% R Load

Protection

Protection category Class I

Anti-islanding protection Support

AC overcurrent protection Support

AC short circuit protection Support

Surge Arrester AC Type III

Leakage current protection Support

AC overvoltage category III

General

Max.

operation altitude 4000m

Noise emission <35dB

Ingress protection degree IP65

Operating temperature range -25℃~60℃

Relative humidity 0~100%

Cooling concept Natural Cooling

Mounting Wall bracket

Dimensions (W*H*D) 515mm*485mm*175mm

Weight 20Kg

Battery connection way Dedicated DC connector

AC connection way (grid & back up) Dedicated AC connector

HMI & COM

Display LED+APP

Communication interface RS485/CAN (for BMS), RS485, USB, DRM/RS485 (for Meter), Optional: WiFi/GPRS/LAN

Certification

Grid VDE-AR-N4105, IEC 61727/62116, AS 4777.2, EN 50549-1, G99, CEI 0-21, NRS 097-2-1

Safety IEC 62040-1, IEC 62477-1

Warranty 5 Years/10 Years (Optional)
