Plc Programmable Logic Controller Gcan 400 510 511 Industrial Control Board - China

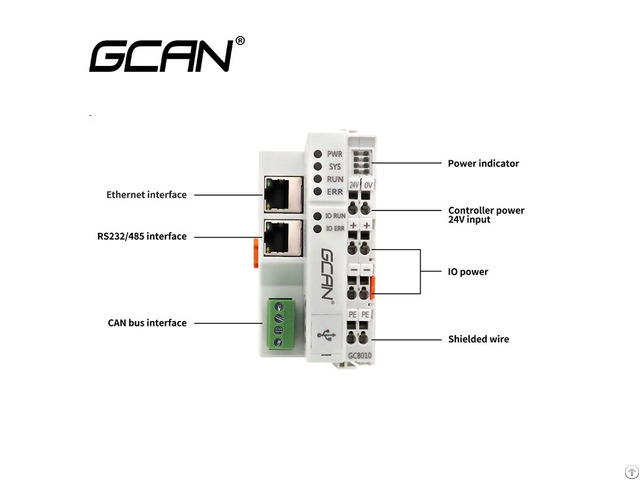

GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/…).

The control module has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.

3 kinds if interface

CAN, Ethernet, RS232/485, Follow ISO 11898, support CANopen/ Modbus RTU/ Modsbus TCP, can be used as master or slave station 5 programming language

Support SFC (Sequential function chart), LD (Ladder diagram), FBD (Function block), ST (Strutured text), IL (Instruction list) IO freely expand

Plenty of IO modules optional including digital&analog IO modules and some other special modules.

One main control module with max 32 IO modules (32*8=256 channels) Free progrm software

Support OpenPCS software, follow IEC 61131-3, the software is free with GCAN-PLC Without specialized downloader

GCAN-PLC can use common micro usb to complete debugging and downloading After-sales service

7 x24 hours every week after sales technical support with our professional engineers to solve problems Feature:

1 - Programming software: OpenPCS

2 - Support Ethernet, RS232 / 485, CAN Bus interface

3 - Support CANopen protocol master / slave station

4 - Support Modbus RTU / TCP protocol master / slave station

5 - Support 5 language of IEC61131-3 standard

6 - Support digital&analog and special expansion IO module;

7 - Max 32 expandable IO modules with extra power modules

8 - Configuration mode: automatic configuration

9 - Provide customizable services (programming / logo / software)
