High Quality 1800 C Mosi2 Heaters - China

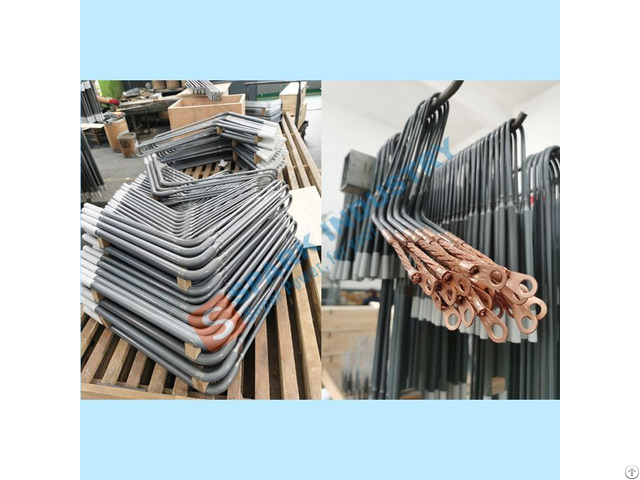

MoSi2 Heating Element Description MoSi2 Heating Element are resistive heating elements based on molybdenum disilicide.

The temperature generated by MoSi2 goes as high as 1700~1800°C in oxidation atmosphere.

They can be widely used in such applications as sintering and heat treatment on electronic ceramics, structural ceramics, magnetic materials, flameproof materials, glass, metallurgy, etc.

MoSi2 Heating Element Application The MoSi2 Heating Elements can be widely used in such applications as sintering and heat treatment on ceramics, magnet, glass, metallurgy, refractory, etc.

MoSi2 Heating Element Physical Properties: Density

g/cm3

Bending Strength

MPa Hardness

GPa Compression Strength

MPa Water Absorption

% Heated Elongation

%

6.0±0.1 500 12 ＞1500 ≤0.2% 4 Indicators in Different Atmospheres Atmosphere

SP1700 SP1800 Air 1700 1800 N2 Nitrogen 1600 1700 Ar Ne Argon, Helium 1600 1700 Dry Hydrogen (dew point)-80℃ 1150 1150 Wet Hydrogen (dew point)-20℃ 1450 1450 Exogas (e.g. 10% CO2, 50% CO, 15%H2) 1600 1700 Exogas (e.g. 40% CO2, 20% CO) 1400 1450 Cracked and partially burnt ammonia 1400 1450 Following should be provided when ordering L Type or Bent 90° MoSi2 Heating Elements: Grade: 1700, 1800

Length of Hot Zone: Le*, in.

or mm

Length of Code Zone: Lu*, in.

or mm (Lu includes l, k and m as in the drawing below)

Shank Spacing: a*, in.

or mm

Specify Le, Lu, and a with the same units (e.g. all as in.

or mm).

Examples:

Grade 1800, d=6mm, c=12mm, Le=950mm, Lu=650mm, a=50mm

Specify as: SPK18L, 6/12x950x650x50mm Detailed Specifications: Brand Name: Spark Type: MS18L Power Source: Electric

Place of Origin: He'nan, China Bulk Density: 6.0+/-1 Working Temperature: 1000℃-1730℃ Advantage Elements have the capabilities to resistance to oxidation and automatically repair, suitable for continued using in any kinds of oxidizing atmospheres.

Elements are shaped in hot-working process, which keeps the base material in good tenacity and plasticity at high temperatures.

The geometrical figure, standard and dimension is canonical, may produce any special shape and any dimension to meet the customer requirement.

Because of the special technology, welding spot is fast and shock resistance, which dramatically reduced the damaged probability of welding spot by electric current, as well as transit and installation.

High density of Spark MoSi2 Heating Elements increases its electrical conductivity.

The characters of faster warming and power consumption low, which reduce production cost.

Good appearance quality and tenacity, high mechanical strength.

Adopt special technology, heaters come with compact protective layer, excellent performance in no-oxidizing atmosphere electric furnaces.

Note: For inquiry, it is better to provide a drawing of the element and specify the element diameters in millimeters.

For example, an element with a (d) diameter of 9 mm and a (c) diameter of 18 mm is often referred to as a 9/18 element.

Other dimensions may be specified in millimeters or inches.
