"gcan Usb Can Bus Analyzer Tool For Automotive Diagnostics Decoding Analysis " - China
price: 95.00 Dollar US$

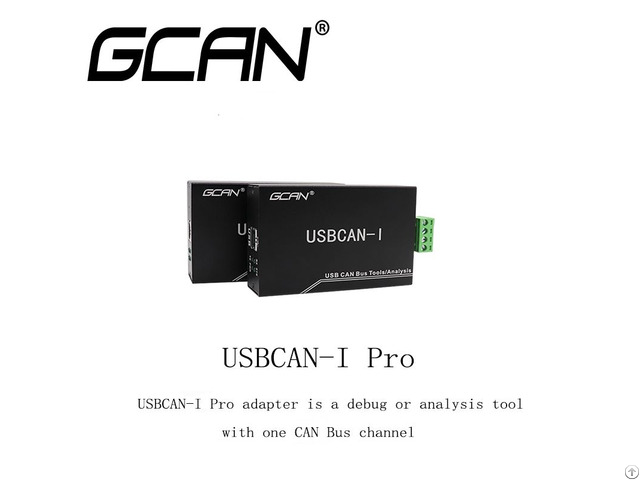

USBCAN-I pro adapter is a analysis tool for CAN bus which can build connection between PC and CAN network.
It can make CAN data visibility with ECANtools software and realize CAN data transmit/receive and other functions.
If user want to develop application program, GCAN provides the application demo code, including VC, VB, .
net, Delphi, Labview and C++Builder and other development routine.
Place of Origin: Liaoning, China
Brand Name: GCAN
Model Number: USBCAN-I Pro
Size (LxWxH): 95 x 58 x 24 mm
Weight: Approx.
90g
Working temperature: -40~ 85℃
Humidity: 15 to 95%non-condensing
CAN channel: 1
CAN connector: Open 4-pin terminal block
Computer interface: USB1.1, USB2.0, USB3.0
Baud rate: 5Kbps~1Mbps
USB interface: USB 2.0, compatible with USB 1.1 and USB 3.0
Electric isolation, insulation level: DC3000V
Company Contact:
- Posted By: Shenyang Vhandy Technology Co., Ltd.
- Phone: +8617602454665
- Address: Room 401, D11 Block, SISP., Hunnan District, Shenyang , Liaoning , China
- Email:
- Website: https://www.gcanbus.com/
Published date: September 28, 2022
- Business Description: shenyang vhandy technology co., ltd. is located in Shenyang, an industrial core city in northeast China.
It is a high-tech enterprise based on Shenyang University of Technology.
The company provides customers with products such as fieldbus modules and industrial controllers, and has long been committed to the development and service of products in the field of industrial communication and industrial control.
The company has many years of industry experience and technology accumulation.
While providing customers with products, it also provides professional pre-sales and after-sales technical support.
More importantly, it can provide solutions for many industries.
