Gcan Gt 412 Gateway Converter Can Be Installed On Din Rail With Openpcs Software - China

Description

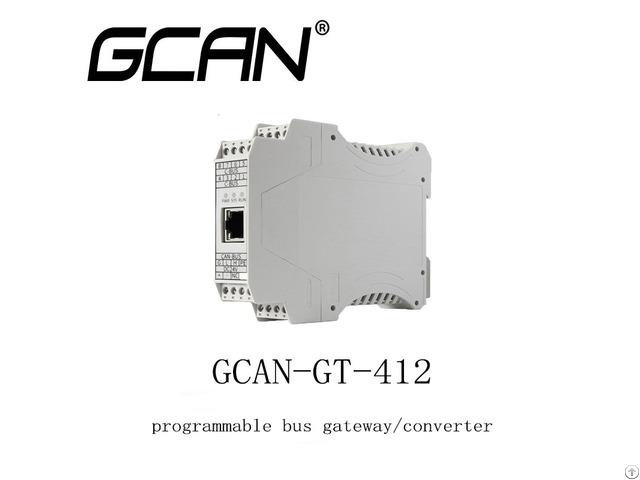

GCAN-GT-412 is a programmable bus gateway/converter.

The device integrates 2 CAN bus interfaces, 1 Ethernet bus interface, and 1 RS232 bus interface.

Before actual use, users need to write application programs for the device through openPCS software to achieve data between different bus interfaces Of each other.

The GCAN-GT-412 module supports multiple standard communication protocols, such as CANopen, SAE J1939, Modbus TCP, Modbus RTU, etc.

In actual use, the user can directly select the function block of the corresponding protocol to load it.

The addition of the function block makes the user Programming work becomes simple, users only need to understand the basic PLC programming

instructions and the characteristics and parameters of the corresponding bus corresponding protocol to complete the programming work.

GCAN-GT-412 can be programmed using OpenPCS software, which supports five standard PLC programming languages that comply with the IEC-61131-3 standard, such as: SFC (sequential function diagram), LD (ladder diagram), FBD ( Function block), ST (structured text), IL (instruction list), which makes the program very portable and reusable, and the software also has a variety of debugging

functions (such as power off, single step, monitoring, etc.

) ) To make the debugging process more convenient.

Essential details:

Place of Origin: Liaoning, China

Brand Name: GCAN

Model Number: GCAN-GT-412

Type: : Gateway

Programming languages: : SFC LD FBD ST IL

Programming environment: : OpenPCS software

Flash (program memory): : 32M bytes

SRAM (data memory): : 16M bytes

User data storage area: : 2K bytes

Run-Time system: 1 PLC task

PLC cycle time: : 1000 instructions take about 3ms

Power shock: : 24V DC max / 10A max
