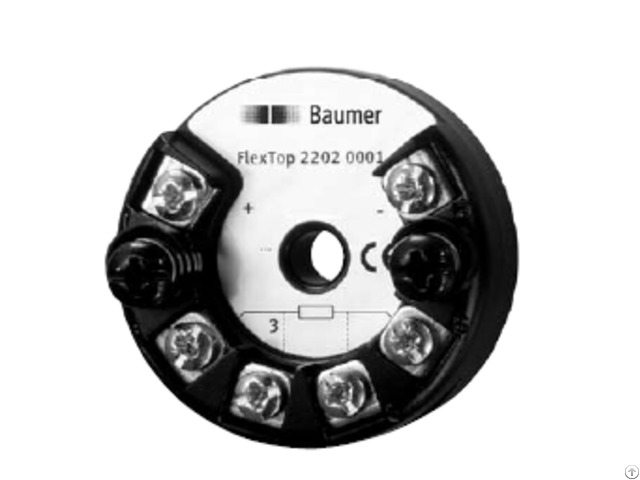

Flextop 2202 Temperature Transmitter - China

FlexTop 2202 is a 4.20 mA loop-powered transmitter for Pt100 sensors.

Either 2-, 3- or 4-wire sensors can be used.

For 2-wire sensors an

automatic balancing of the sensor cable resistance is possible with

shorted sensor cable.

The cable resistance can be manually configured

as well.

Using a PC, the Windows-based Flex-Program and a FlexProgrammer

configuring unit, the following parameters can be configured via

the output connectors (2-way communication): TAG no., number of

wires, cable resistance, error detection level, measuring range/unit, damping, offset and status indication.
