Digital Tv Qam Qpsk Cofdm Modulator - China
price: contact company for price
CS5511 ATSC-T Modulator Outline CS5511 ATSC-T Modulator is compatible
with American ATSC A/53 standard.
It supports DVB-ASI and SMPTE-310
input, after modulating the inputting signals through ATSC 8-VSB, it can
output RF signals with the range between 40~860MHz.
Features
1 - Full complying with ATSC A/53 standard
2 - Constellation mapping: 8-VSB
3 - EN50083 ASI and SMPTE 310M interface standard
4 - Dual channel DVB-ASI & SMPTE-310M input, automatic switch-over and hot backup
5 - RF range: 40MHz~860MHz, 1Hz stepping
6 - Front panel and IP long distance control
7 - RS coding, data interlacing, Trellis coding
8 - Channel bandwidth: 6MHz
9 - Excellent RF output performance: EVM, MER, SNR, shoulder level and so on
10 - Remote maintenance, monitoring and software upgrading
11 - Keyboard operation and LCD display, NMS controlling.
Specification
Input interface
2 channels ASI input, hot backup, BNC interface
2 channels SMPTE 310M input, hot backup, BNC interface
To know more details, welcome to contact our salesman!
Castar technology Co, .
Ltd
Digital Tv Qam Qpsk Cofdm Modulator
For any questions and needs please contact us below
Company Contact:
- Posted By: Castar technology Co,.LTD
- Phone: 8602883853205
- Address: No.305 Shuncheng street,Qingyang district, chengdu , China
- Email:
Published date: September 7, 2012
- Business Description: involved in international trade import export of goods, products, and services
Related listings
-
Dtv Headend Dvb T Isdb Atsc ModulatorEquipment - Electrical - Castar technology Co,.LTD - China - September 7, 2012 - contact company for priceCS5511 ATSC-T Modulator Outline CS5511 ATSC-T Modulator is compatible with American ATSC A/53 standard. It supports DVB-ASI and SMPTE-310 input, after modulating the inputting signals through ATSC 8-VSB, it can output RF signals with the range betwee...
-

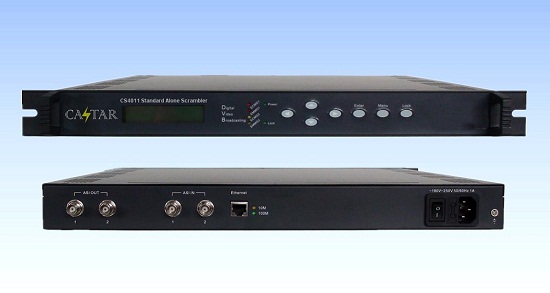

Ts Scrambler HeadendEquipment - Electrical - Castar technology Co,.LTD - China - September 7, 2012 - contact company for priceOutline: CS4011 Standard Alone Scrambler can simulcrypt scramble the input stream, and the embedded control word generator can transmit the constant or variable control word to scrambler the input transmitting stream. The internal simulcrypt synchron...
-
