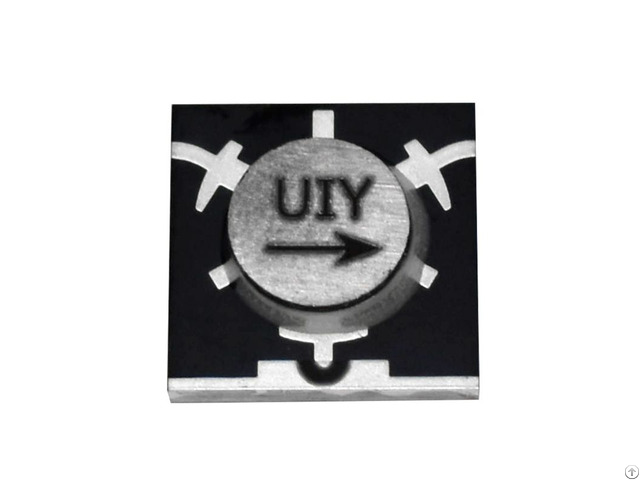

C Band Rf Microstrip Isolators Low Insertion Loss 0 4db - China
price: 68.00 Dollar US$
Model Number: UIYMI1212A41T43
Frequency Range: 4.1~4.3GHz
Bandwidth: 25%
Insertion Loss: 0.4dB
Isolation: 20dB
VSWR: 1.2
Forward Power: 15W
Reverse Power: 5W
Temperature: -55~+85°C
Dimension: 12*12*4mm UIY Inc.
provide Low insertion loss, high isolation, high power handling on RF Module.
Exceptional customer service and technical support are on hand to support our customers.
Since 2003, UIY Inc.
has become a critical supplier and partner to major companies serving the Aerospace, Military, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include RF Isolators, RF Circulators, RF Filters, Power Divider / Splitter, Duplexer/Triplexer, Hybridge Combiner, Coaxial Termination, Coaxial Attenuator, Directional Coupler, Waveguide to Coaxial Adapter.
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: January 3, 2023
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
