6pcs Flybacks Zr 200w Co2 Laser Psu - China

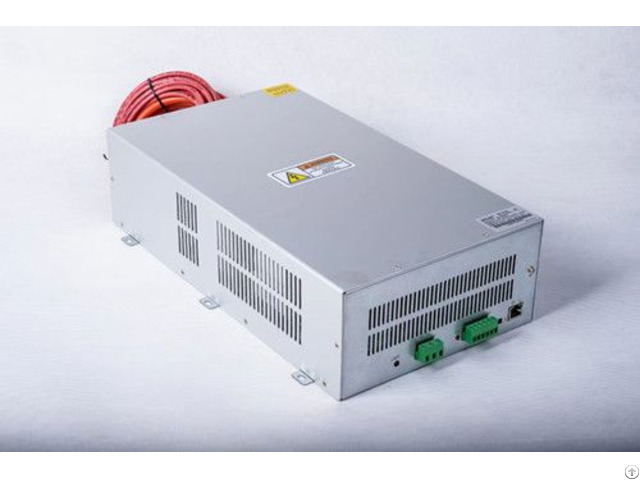

ZR-200/300W CO2 Laser Power Supplies for folded CO2 tube

Feature

1 - The 200W power supplies have good compatibility : This 200W power supplies can match with RECI, Yongli, SPT, EFR, Weiju and other brand 200W CO2 tube, besides this feature, the 200W power supplies also have strong adaptability and fast response, engraving or cutting benefits good effect.

2 - This analog signal power supplies use ordinary H/L/P/G/IN/5V interface to receive control signal.

It adopts aluminum upper cover and base, and galvanized plate casing.

on this analog signal power supplies.

3 - This analog signal power supplies have easy control: The analog signal power supplies use high or low level for control.

The use of TTL-level control can realize start and stop quickly.

At the same time the analog signal power supplies have a protection switch, testing is made by external water and ventilation

4 - This folding CO2 tube power supplies have stable working performance: Each folding CO2 tube power supplies have been much more testing procedures and under full load high temperature (52~55 degrees celsius) 24 hours of aging, which ensure the stability of each folding CO2 tube power supplies.

5 - The folding CO2 tube power supplies have good protection feature: The folding CO2 tube power supplies have open circuit protection to make this folding CO2 tube power supplies work for a short time in the open state, so as to make it avoid the laser tube broken.

6 - This 200W power supplies use 4PCS high quality flybacks/transformers which can make sure the 200W power supplies has stable voltage and current output to the load.

7 - The laser power control is simple, the 200W power supplies can use 0-5V analog signal or PWM signal for laser power control

Specification

Input Input voltage AC220V±10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 1300W Maximum input current 5.9A

Output Maximum output voltage 52KV Maximum output current 36mA

(depending on the laser tubes of different manufacturers)

Efficiency More than 90% (Full load)

Response speed Not more than 1ms

Control lnterace TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection

Open Circuit Protection Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100, 000 feet of work

200, 000 feet of storage, dose not work

Cooling methods Forced air cooling (fan cooling)

Dimensions (LxWxH) 390mmx240mmx105mm

Company Contact:

• Posted By: Jinan Ruby Laser Technology Co.,Ltd

• Phone: 13295411923

• Address: 8510 Room.Huiju Building.intersection of West Second Ring Road and Meili Road,Tianqiao District, Jinan , Shandong , China

• Email:

• Website: http://www.rlaserpowersupply.com

• Business Description: Jinan Ruby Laser Technology Co.,Ltd is main laser power supply manufacturer which was established at 2007 - From then on ,she has more than 17 years experience to research & develop, produce and sell ZRSUNS brand CO2 laser power supply and other laser cutting or engraving machine accessories.

  At present, our CO2 power supply has three series products(ZR series,BR series and DY series).

  ZR/BR series laser power supplies are used for ordinary CO2 laser tube and DY series CO2 power supply is specially for RECI brand CO2 laser tube.

  Based on client’s using feedback and’ innovation in electronic technology,the company developed LCD screen display laser power supply.

  Now ZRSUNS products covers 40W/50W/60W/80W/100W/150W /200W CO2 laser power supplies.

  Since its establishment,Jinan Ruby Laser Technology Co., Ltd attaches great importance to the quality of laser power supply to establish ZRSUNS brand’s good reputation in domestic and foreign markets In order to realize this goal, it has an experienced management team and skilled technical workers.

  And all accessories are purchased from United States, Japan,France, Taiwan and China’s well-known companies, some electronic components have UL,CE,CCC,TUV,SA certification.

  The laser power supplies are also produced accordance with the requirements of ISO9001 quality system.

  At present, all CO2 laser power sources have obtained CE certification, and they are used by the main laser engraving machine, laser cutting machine and laser marking machine manufacturers.

  Excellent quality, reasonable price and professional pre-sale and after-sales service team make ZRSUNS power supply become one of three great power supply manufacturers in China.

  ZRSUNS CO2 power source’s feature,specification and wiring connection method are completely same with each other, which can replace these two brands power supplies.

  Now Jinan Ruby Laser Technology Co., Ltd 's laser power supply have occupied about 40% of the Chinese market.

  Jinan Ruby Laser Technology Co., Ltd has 25 skilled technical workers, which can finish large quantity purchase orders in very short time with good quality.

  The company also has 4 chief engineers which make sure the company can customize the power supply on clients’ special requirement.

  esides standard laser power supply, ZRSUNS can also provide OEM services which can meet different clients special requirement in business.
