Wifi Converter For Wireless Data Transfer Wf 01 - China

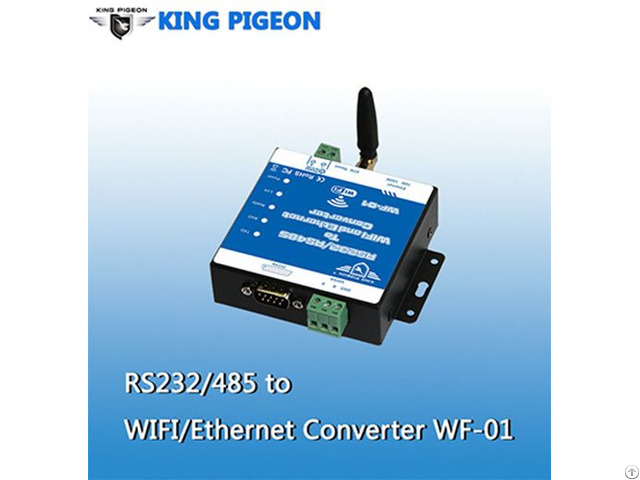

WF-01 is a wireless networking router, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking.

WF-01 provides a serial port to WIFI function, can be RS-232/485 converted into a TCP/IP serial network interface, RS-232/485 serial port and WIFI/ Ethernet bidirectional data transparent transmission.

The serial device can transfer the data to TCP/IP network interface connect to the network for data communication, communication extended the range to serial device greatly!

1 - Can use as a Router;

2 - Support Hardware AP, HTTPD Client and WEB IO;

3 - Suport TCPB Function;

4 - Fast Access WiFi;

5 - Support hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition;

6 - RS232 RS485 automatic switching;

7 - Support Webpage Configuration；

8 - RJ45 network connection, support wired Ethernet transmission;

9 - Rich status indicator light: Power/Ready/Link/RXD/TXD;

10 - Reload button, do not worry incorrect settings(in working status, press the button 3s then it load to default settings and automatic restart);

11 - Design with positioning hole, convenient installation;

12 - Highest support baud rate 460800 bps;

13 - Optional TCP Server/TCP Client/UDP Client/ UDP Server mode, the TCP Server mode can support up to 32 Client connection;

14 - Multiple applications for data transmission from wired to wireless.
