Wholesale Zr 50w Hv Co2 Laser Psu - China

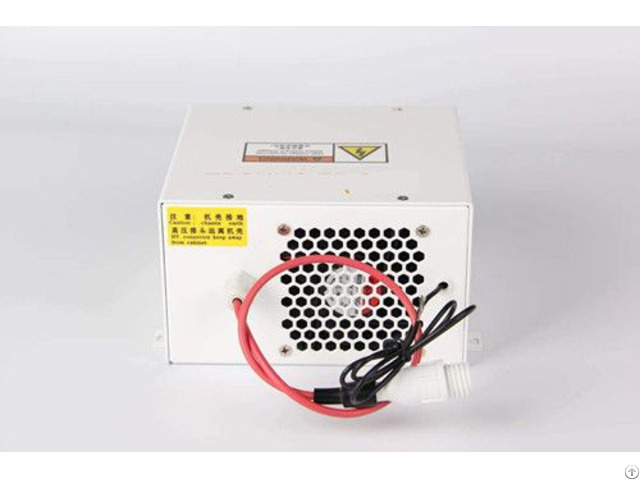

ZR-50W CO2 power supplies

Feature

1 - This ZR-50W CO2 power supply adopts G/P/L/G/IN/5V as control signal output port with 5V/24V output and use gray aluminum case.

2 - This 50w laser power supply has stable performance: Each co2 power supply has been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging, to ensure the stability of each50w laser power supply.

3 - Laser power control is simple on this 50w laser power supply, you can use 0 ~ 5V analog signal control the laser power, you can also use the PWM (pulse width modulation) signal to control output laser power.

4 - Good compatibility: This PWM/0-5V laser power supply can match with most brand 1000mm 50W CO2 laser tube and it also has a strong adaptability and fast response, engraving, cutting advantages of good effect.

5 - Control is simple: This co2 laser power supply selects high or low level control, the use of TTL-level control of the laser can start and stop.

At the same time it increases the protection switch, testing is through the external water and ventilation on this PWM/0-5V laser power source.

6 - Protection function: This PWM/0-5V laser power supply has open circuit protection: Under the condition of good protective earth, the50w laser power supply can work in open-circuit for a short time, which could avoid the damage to this PWM/0-5V laser power supply.

Specification

lnput Input voltage AC220V±10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 370W Maximum input current 1.7A

Output Maximum output voltage 25KV Maximum output current 25mA

(depending on the laser tubes of different manufacturers)

Efficiency More than 90% (Full load)

Response speed Not more than 1ms

Control lnterace TTL multilevel switching control, effective level can be high and low selection (see control wining diagram)

Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection

Open Circuit Protection Can be short circuit (requires a good grounding shell, while avoiding the positive electrode and the shell between the arc)

Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100, 000 feet of work

200, 000 feet of storage, dose not work

Cooling methods Forced air cooling (fan cooling)

Dimensions (LxWxH) 162mmx145mmx97mm
