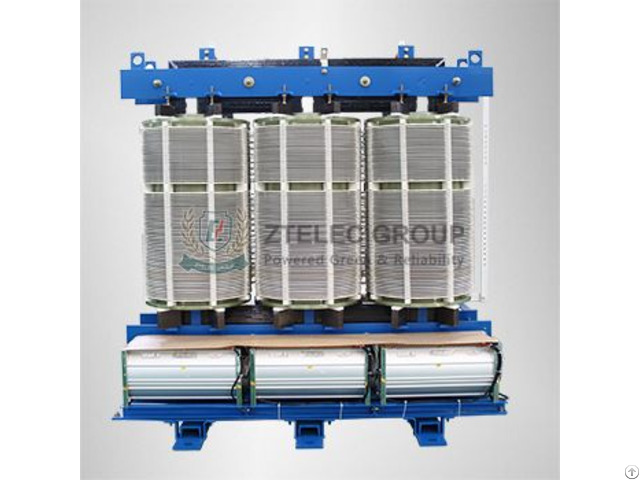

Technical Data Zpsg Dry Type Phase Shifting Rectifier Transformer - China

Features of Products

The core material is made of high-quality cold-rolled silicon steel sheet carefully laminated in full 45diagonally;

Insulation materials of transformer are H level with the 20-year service life time the same as transformers;

The insulation materials on wires are with H class insulation.

And the products have been painted with 3-proofings lacquer and with curing process of high temperature which all can strengthen the anti-short circuit ability;

The case of the transformer is made of quality steel sheet The wiring style is bottom in/ bottom out;

The cable holes are on the base of the transformer with cable-fixation device.

Standers

IEC Standards

IEC 60076-1~5 Electrical Transformer

IEC 61378-1: 1997 Converter Transformer

GB or JB Standards

JB/T 8636-1997 Power Converter Transformer

GB1094.11-2007 Dry-type Power Transformer

GB1094.1-1996 Power Transformer: General

GB1094.2-1996 Temperature rise

Normal Operating Condition

Max.

Temperature: +40℃

Max.

Average Daily Temperature: +30℃

Max.

Average Annual Temperature: +20℃

Min.

Temperature: -30℃

Altitude: ≤1000m

Installation: indoor, non-corrosive facturs

Waveform of power voltage is close to sine wave

Application

Apply to electricy, petroleum, chemical industry, metallurgy, municipal water supply, waste water treatment, extile, paper, pharmaceuticals, coal, cement.
