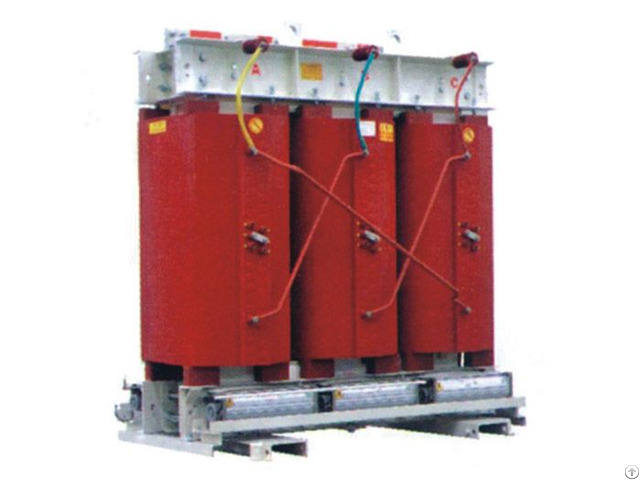

Low Loss Scbh15 Series Amorphous Alloy Dry Type Transformer - China

SCBH15 Series amorphous alloy dry-type transformer is a new type energy-saving transformers, which combines technology advantage with low-loss of amorphous alloy and good- insulation and strong mechanical strength of traditional epoxy resin pouring transformer.

By comparing with the traditional SCB10 series silicon steel dry-type transformers, it can approx.

reduce no-load loss by 70%, no-load current by 80%, and operating temperature by 30-40℃; the service life extends appox.

10 years.

Moreover, SCBH15 Series transformer has the advantages of fire resistance, flame retardant, high reliability and maintenance free, which can be used in the power load center, suitable for places with higher demands in fire protection and higher safe demand environment.

Operating Temperature 70℃ 100℃ Amorphous transformer core temperature is about 30〫C, coil temperature is about 40〫C; silicon steel transformer core temperature is about 45〫C, coil temperature is about 50〫C.

The amorphous transformer can work under low temperature, has strong overload capacity, is much safer.

Insulation Cracking Slow Fast Amorphous transformer has the property of low loss, producing less heat, low operating temperature, slow insulation cracking, high reliability, long working life.

Working Life 30 years reliable operation 20 years reliable operation Harmonic Resistance Property not affected by the harmonic voltage Causing higher iron loss and noise.

Iron loss is 1/10 of the silicon steel sheet transformer under high frequency, it can decrease iron loss caused by harmonic current when operating with harmonic voltage .

Taking advantage of transformer capacity to reduce the effect caused by harmonic, and reduce equipment investment cost, increase the system stability.

Performance Advantages & Feature R Ultra low loss- energy saving and high electricity efficiency--no-load loss saved by 70% compared with the traditional transformers; R Ultra low noise--solved the operation noise problem by using three- column amorphous cores; R Maintenance free, zero pollution --Low electricity consumption can reduce SO2, CO2 emission, decrease environmental pollution and greenhouse effect; R Lower working temperature, longer service life-- full load operating temperature is less than 70℃ to slow down the insulation deterioration; R Good harmonic resistance-- retaining the advantage of low loss and low excitation current under high flux density; R Efficient investment return.

Production Workshop All production and manufacture procedures are under strict control.
