6w Super Wide Input Range Regulated Signgle Output Dc Converters - China

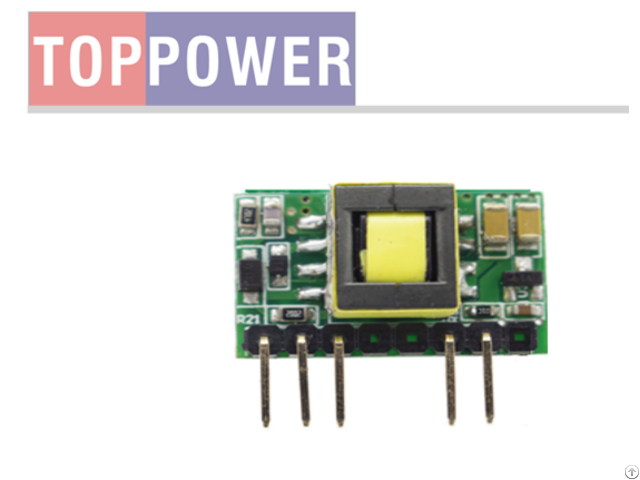

6W super wide input range regulated signgle output DC/DC converters TP06DE series is 6W, 8: 1 wide input range, efficiency up to 87%, 1500VDC isolated voltage, at operating temperature -40℃ to+85℃, With input undervoltage protection, output overcurrent, short circuit protection, widely used in communications, medical, industrial control, power, instrumentation, etc.

Super wide input range (8: 1) Low Ripple &Noise 1500VDC isolated voltage

High efficiency, high power density Output over-load, short circuit protection Operating temperature -40℃ to+85℃

Regulated parts RoHS compliant /

SELECTION GUIDE

Part Number Input Voltage (VDC) Output Efficiency (Typ.

)

% Ripple &Noise

(MV) Rated Range values Voltage(VDC) Current

(A) TP06DE48S03W 48 9-75 3.3 1.8 78 50

TP06DE48S05W 48 9-75 5 1.2 81 50

TP06DE48S12W 48 9-75 12 0.5 85 50

TP06DE48S15W 48 9-75 15 0.4 86 50

TP06DE48S24W 48 9-75 24 0.25 87 50

Notes：1 - Do not meet the conditions for full load start when input @9-10VDC, only Can start at full load when voltage above 11V.

2 - When the working temperature ≤ 30 ℃, the maximum output power can be 10W for a long time.

3 - It is necessary to add A voltage-stabilizing diode 5.1V / 0.5W between –Vin pin and CTR pin, See the application circuit for details.
