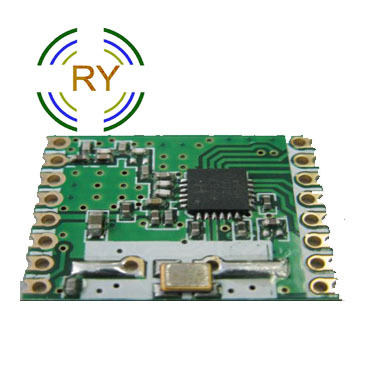

17dbm Rf Transmitter Wt Ry F04 - China

Description:

The WT-RY-F04 is a fully integrated transmitter which can operate in the 315, 434, 868 and 915 MHz licence free ISM bands.

The transmitter has two modes of operation, a conventional MCU controlled mode and a ‘standalone’ mode which enables the RFM67W to download configuration and messages from an E2PROM in response to a user input.

Stand-alone mode makes the RFM67W ideal for miniaturized or low cost remote keyless entry (RKE) applications.

It also offers the unique advantage of narrowband and wide-band communication in a range of modulation formats.

The WT-RY-F04 offers high RF output power and channelized operation suited for the European (ETSI EN300-220-1), North American (FCC part 15.231, 15.247 and 15.249) and Japanese (ARIB T-67) regulatory standards.

.

KEY PRODUCT FEATURES:

•1.

+17 dBm to -18 dBm Programmable output power

•2 - Bit rates up to 600 kbits / sec.

•3 - FSK, GFSK, MSK, GMSK and OOK modulation

•4 - Stand-alone mode: No need for a host MCU

•5 - Consistent RF performance over a 1.8 to 3.7 V range

•6 - Low phase noise (-95 dBc/Hz at 50 kHz) with automated PLL

•7 - calibration and fully integrated

•8 - VCO and loop filter.

•9 - On chip RC timer for timer/wake-up applications

•10.16-PIN SMD package

•11 - Low battery detection.

•12 - Low cost

Application :

•Remote Keyless Entry (RKE)

•Remote Control / Security Systems

•Voice and Data RF Communication Links

•Process and building / home control

•Active RFID

•AMR / AMI Platforms

17dbm Rf Transmitter Wt Ry F04
