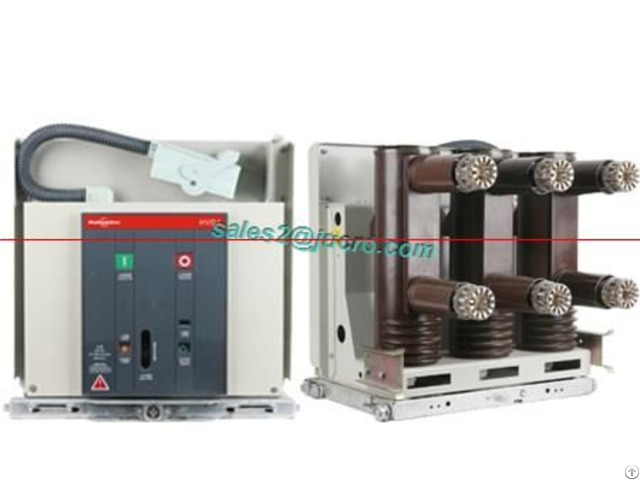

VS1 12KV vacuum circuit breaker VCB

HVD1-12(VS1-12) type indoor AC HV vacuum circuit breaker VCB (hereinafter referred to as circuit breaker) are suitable for 12kV air-insulated indoor switchgears, used as protection and control unit of power equipment of industrial& mining enterprise.

Due to the super excellence, it is especially for location where requires the frequent operation of rated working current or multi breaking short circuit current.

The circuit breaker adopts the integrated design of operating mechanism and circuit breaker body, servers as not only fixed installation, but also the handcart unit through equipping with a special propelling mechanism.

2 - Service conditions 3.1 Environment temperature: -15degree~+40 degree;

3.2 Environment humidity: Daily average relative humidity: <95%, monthly average relative humidity: <90%; Daily average saturated vapor pressure: <2.2×10-3Mpa , monthly average saturated vapor pressure: <1.8×10-3Mpa ;

3.3 Altitude: Not exceed 1000m;

3.4 Earthquake intensity: Not exceed&degree;

3.5 Service location: No water, flammable or explosive matter, chemical corrosive gas or drastic vibration.

1 - Main specifications and technical parameters

Rated voltage: 12 kv

Rated lightning impulse withstand voltage(1min): 75 kv

Rated short-time power frequency withstand voltage (1min): 42 kv

Rated short-circuit breaking current: 20KA / 25KA / 31.5KA / 40KA

Rated current: 630A, 1000A, 1250A / 630A, 1000A, 1250A, 1600A / 1250A, 1600A, 2000A, 2500A / 1600A, 2000A, 2500A, 3150A

Rated peak withstand current: 50KA / 63KA / 80KA / 100KA

Rated shorted-time withstand current: 20KA / 25KA / 31.5KA / 40KA

Rated shorted-time making current(peak): 50KA / 63KA / 80KA / 100KA

Power frequency withstand voltage of secondary circuit(1min): 2000 v

Opening time(rated voltage): 20~50 ms

Closing time(rated voltage): 30~70 ms

Rated short-circuit current breaking times: 50(40kA 30) times

Mechanical life: 30, 000 times
