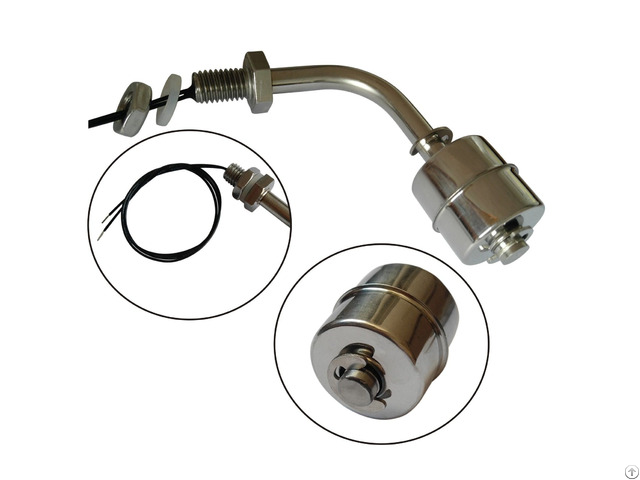

Sus 304 Stainless Steel Side Mounted Liquid Level Sensor Float Switch - China
price: check with company for price
Item Name: Water Level Sensor Float Switch
Model: CFS-1380S
Cable Length: 350mm / 13.78inch
Switch Body Size: OD28 x 28mm
Thread Dia (Approx): M10*1.5
Max Contact Rating: 10W
Float Body Material: SUS 304 Stainless Steel
Float Ball Material: SUS 304 Stainless Steel Wire Material: 1332 24# Teflon
Working Voltage: AC 110V-220V
Working Temperature: -40℃~+100℃
Max Temperature: 100℃
Working Pressure: 1Mpa / 145PSI
Max Pressure: 1Mpa / 145PSI
Max Switching Current: 0.5A
Max Breakdown Voltage: 220VDC
Max Carry Current: 1.0A
Max Contact Resistance: 100mOhm APPLICATIONStainless steel level sensor switch is well suited for corrosive environment such as water heating or cooling applications, like water dispenser, etc.
LONG SERVICE LIFE AC110V-220V and DC 0V-200V circuit can be used, Electrical life: 1 million times.
Company Contact:
- Posted By: Shenzhen Comus Technology Co., Ltd
- Phone: 18676772278
- Address: E building, Zaohe keng Industrial park, Jixia Community,, Shenzhen , Guangdong Sheng, China
- Email:
- Website: http://www.comus-intl.cn/
Published date: September 1, 2020
- Business Description: Shenzhen Comus Technology Co., Ltd is a manufacturer from China who provide standard product and custom design service over different kinds of level sensor, float switches, magnetic switch, reed switch, temperature in different material and different size subject to clients requirement.
