Full 24 2 Giga Sfp Uplink Poe Swith - China

Product Description:

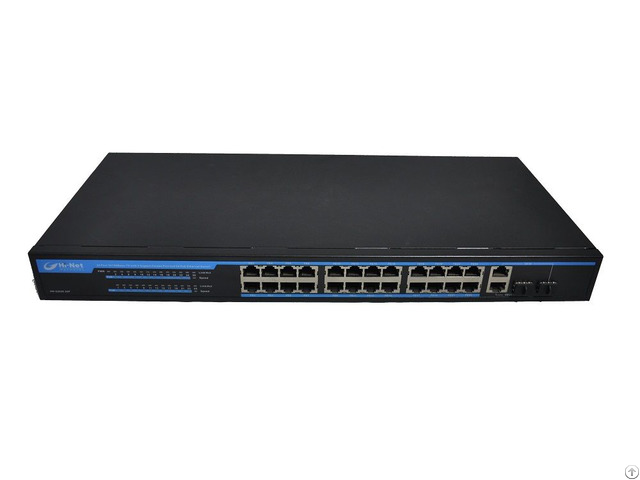

The S2626-P is a 26G POE Switch designed by Hi-Net Technology Company.

It provides 24 10/100/100M RJ45 Ports, 2 1000M SFP fiber ports, will be helpful in the security project.

It provides 16/24 PoE ports.

The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The S2626-P is a 19’’ case-shaped device with 1U high.

It is with the internal industrial power supplies, have three optional power supplies—250W, 400W, 500W.

All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max.

Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Product Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 24 10/100/1000 Base-TX ports and 2 1000M SFP Ports

• Provides 16/24 PoE ports, Each POE port output 30W max power

• Build in power supplies, optional 250W or 400W or 500W

• High back-plane bandwidth 52Gbps

• Up to 8k MAC address table size

• IEEE802.3x Flow control

• 19’’ rack-mounted size metal case for the POE switch

• Pin Feet: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)

• Surge protection for power port and data ports

• EMI standards complies with FCC, CE class B

• Extend Function: Port Lightning Protection, Power lightning protection, solid vlan.

Product Specifications:

Item Description

Summarize

Fixed port 24 10/100/1000Base-TX ports, 2 1000M SFP ports

LED Indicators PWR, PoE, Link/Act LED.

Input voltage 100V～240V AC, 50/60Hz

Network Standard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az

Network Media 10BASE-TX: UTP category 5, 5e cable (≤250m)

100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: UTP category 5, 5e cable (≤150m)

Uplink Fiber Port: Single Fiber 20KM, Double Fiber: 20Km

Power Supplies 250W, 400W, 500W Optional

Operating temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Built-in Noiseless FAN.

PoE

PoE port 16/24 10/100/1000Base-TX ports.

PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, MAX 30W.

Pin assignment V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

Layer 2 Switching

Switching capacity 52G

MAC address table 8K

Weight <5KG

Package S2626-P POE switch

User Manual

Power Cable

Warranty Card

Order Information:

S2626-16P-250W 26 ports Gigabit Switch with 16 PoE Ports(Total 250W)

S2626-16P-400W 26 ports Gigabit Switch with 16 PoE Ports(Total 400W)

S2626-24P-250W 26 ports Gigabit Switch with 24 PoE Ports(Total 250W)

S2626-24P-400W 26 ports Gigabit Switch with 24 PoE Ports(Total 400W)

S2626-24P-500W 26 ports Gigabit Switch with 24 PoE Ports(Total 500W)
