Double Rcd Unswitched Socket - China

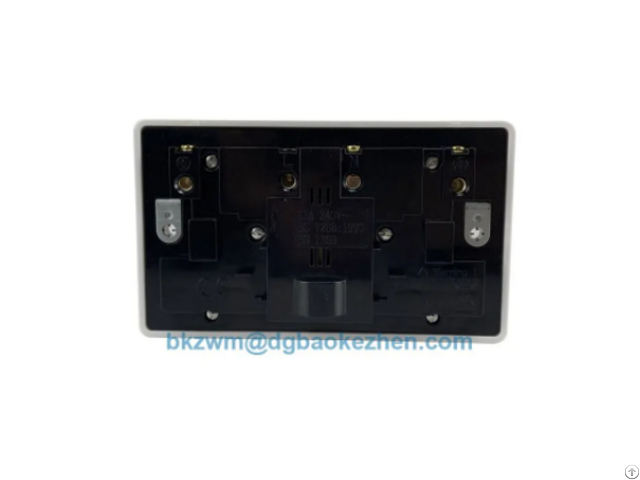

13A Double RCD unswitched socket 30mA &10mA

PRODUCT DESCRIPTION

Electrical Equipment & Supplies>> Electrical Plugs & Sockets

Place of Origin: Guangdong, China (Mainland)

Brand Name: BAOKEZHEN

Model Number: BKZ0230PW wall socket

Type: Wall Socket

Grounding: Standard Grounding

Rated Voltage: 230V

Rated Current: 13A

Application: Residential / General-Purpose

Color: white

Clad: PC

type: double pole

Characteristics: RCD safety socket, no switch

Advantage

1 - double RCD plastic socket, unswitched

2 - PC material, Passive RCD

3 - Dimension: 146*86mm

4 - ROHS, CE, BS, EMC, UKCA

Specification

Serial No.

Parameter Description

1 Rated Voltage 240V

2 Rated Current 13Amax

3 Tripping current 10mA & 30mA

4 Rated trip current 30mA

5 Trip speed less than 40ms

6 Cable capacity 3*2.5mm2

7 Standard CE BS7288 BS1363

8 Remarks Fuse inside

9 Application Residential / General-Purpose

10 color white

11 material PC

12 Size 146*86mm

13 Endurance 3000 Cycles min

14 Hit-Pot Test 2000V/1 Minute

15 Application Equipment, Household appliances, workshop and outdoors, etc.
