Composite Silicone Insulators - China

Composite insulators are made of insulated mandrels, silicon rods, and three ends of the connecting rods.

Insulated mandrel is epoxy resin glass fiber pull rod short, it is a composite insulator skeleton, plays a support umbrella, the insulation, connecting both ends of the fixture, and bear the mechanical load and other multiple effects, with a high resistance Strength, generally up to 600Mpa or more, is 2 times the ordinary steel, porcelain material 5 to 8 times, and has good dielectric properties and chemical resistance, as well as good bending fatigue, creep resistance and impact Sex.

Silicone rubber umbrella is mainly used to protect the mandrel, cover rain and snow, increase the creepage distance and the role of external insulation, is based on polymer silicone rubber matrix, supplemented by flame retardants, anti-aging agent, coupling And other filler by high temperature and high pressure vulcanization, with good hydrophobicity and migration, and good corrosion resistance, aging resistance, electrical insulation and other properties.

And has a high pollution flashover voltage and crush resistance, uniform voltage distribution, compared with porcelain in the same conditions, the flashover voltage is more than 2 times the porcelain.

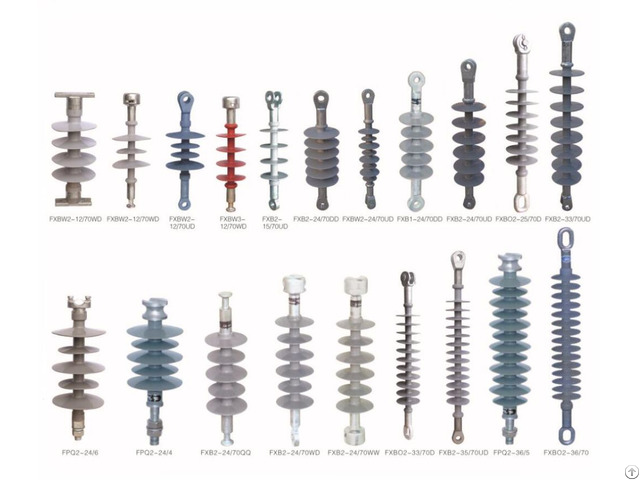

Composite insulator product type

FXBW rod type suspension composite insulator

FPQ compound pin insulator

FZSW composite pillar insulator

FS composite crossbar insulator
