05w Isolated Single Output Dcdc Converters - China

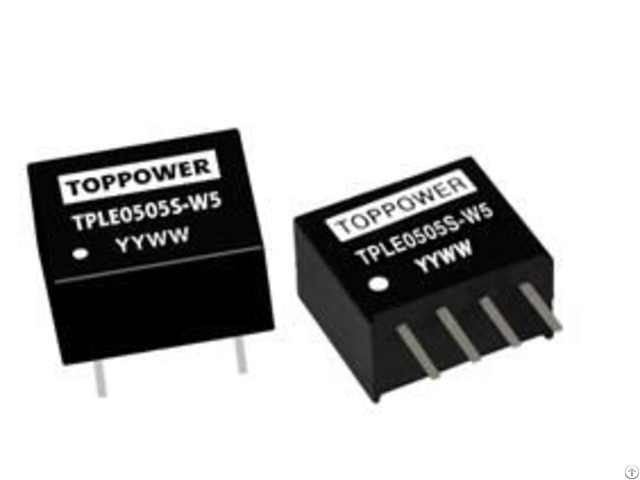

The TPLE-W5 series are miniature, isolated low power and high efficiency DC/DC converters in a SIP and DIP package.

They offer the ideal solution in many space critical applications for board level power distribution.

The internal SMD construction makes it possible to offer a product with high performance at low cost.

The series offers smaller size, improved efficiency, lower output ripple noise and 1KVDC isolation.

Part Number Nominal Input Voltage Output Voltage

V V

TPLE0303D-W5 3.3 3.3

TPLE0305D-W5 3.3 5

TPLE0505D-W5 5 5

TPLE0509D-W5 5 9

TPLE0512D-W5 5 12

TPLE0515D-W5 5 15

TPLE0303S-W5 3.3 3.3

TPLE0305S-W5 3.3 5

TPLE0505S-W5 5 5

TPLE0509S-W5 5 9

TPLE0512S-W5 5 12

TPLE0515S-W5 5 15

TPLE1205D-W5 12 5

TPLE1209D-W5 12 9

TPLE1212D-W5 12 12

TPLE1215D-W5 12 15

TPLE1205S-W5 12 5

TPLE1209S-W5 12 9

TPLE1212S-W5 12 12

TPLE1215S-W5 12 15

RoHS compliant Single output rail

High efficiency for low power applications SIP & DIP package styles

UL 94V-0 package material Footprint from 0.69cm2

Output voltage: 3.3V, 5V, 9V, 12V, 15V Custom solutions available
