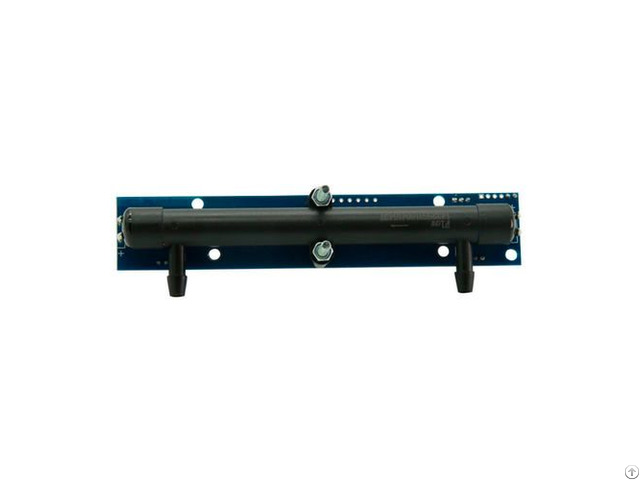

Ultrasonic Gas Flow And Oxygen Sensor Gasboard7500e - China
price: contact company for price
Introduction Gasboard 7500E ultrasonic gas flow and oxygen sensor can be used to measure the gas flow and oxygen concentration based on the ultrasonic technology, which has better performance than electro-chmical and other oxygen sensors.
With the function of data display, online monitoring, etc., it has been widely used in home and medical oxygen generator, PSA oxygen generator, etc.
OEM/ODM SERVICE CAN BE CUSTOMIZED.
Features
●Cutting-edge ultrasonic technology adopted
●Full scale temperature compensation
●Small size, stable, high accuracy, low cost
●Factory calibration, No need to re- calibrate it
●Long life span
●Customization available
●Pass EMC test, able to reduce interference Applications
●PSA oxygen generator
●Oxygen concentrator ●Respirator
●Anesthetic machine Specifications
1 - Measurement range: 0-100%
2 - Response time: 0.5s
3 - Output: 9600 bps UART_TTL, Voltage
4 - Working temperature: 10-45℃
5 - Storage temperature: -20℃-60℃
6 - Relative humidity: 5-85%RH(non-condensing)
7 - Max Pressure: 150Kpa
8 - Power supply: DC12V Average and peak current value is influenced by the voltage
9 - Dimensions: 120x22x13.6 mm (L*W*H)
Company Contact:
- Posted By: Wuhan Cubic Optoelectronics Co.,Ltd
- Phone: 86-027-81628827
- Address: Fenghuang No.3 Road, Fenghuang Industrial Park,, Wuhan , Hubei , China
- Email:
Published date: August 6, 2017
- Business Description: Wuhan Cubic Optoelectronics Co., Ltd is a high-tech enterprise specializing in the R&D , manufacture and sales of gas sensor, gas analyzers and complete gas monitoring systems, and offering IoT solutions service.
Wuhan Cubic has developed more than 30 types products lined in 6 categories which are used in the areas of smart home , HVAC system , automotive, consumer electronics, health care, biotechnology, industrial safety, intelligent agriculture, wearable and etc.
The product sales has covered all provinces in China and exported to 73 overseas countries and territories.
