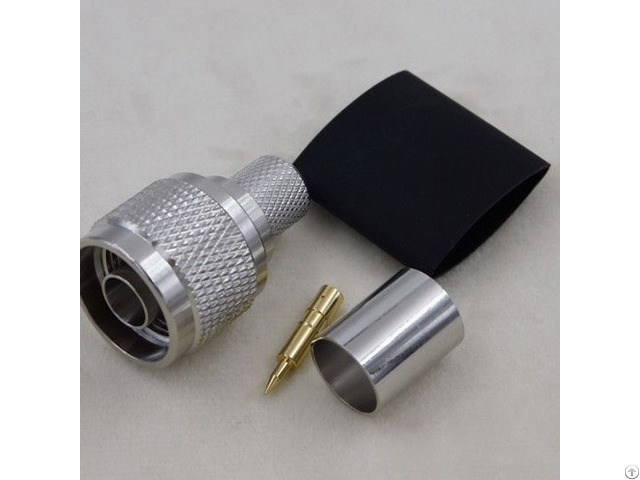

Rf Coaxial N Male Crimp Connector For Lmr400 Cable - China

Model No.

N-C-J400 Interface IEC 60169-16 Electrical Characteristic Impedance 50ohm Frequency Range DC-11GHz VSWR 1.20 @DC-3GHz; ≤1.30@3-6GHz Dielectric Withstanding Voltage ≥2500V RMS, 50Hz, at sea level Working Vlotage ≤1000V RMS, 50Hz, at sea level Contact Resistance Center Contact ≤1mΩ Outer Contact ≤0.25 mΩ

Mating — Mechanical Durability Mating cycles ≥500 Material and Plating Parts Name Material Plating Body Brass Ni

Insulator PTFE —

Inner Conductor Phosphor Bronze Au

Coupling Nut Brass Ni

Gasket Silicone Rubber —

Ferrule Annealed Copper Ni

Environmental Operating Temperature _40 ℃- + 85 ℃ Weatherproof Rate IP67 RoHS Compliant Yes

Company Contact:

• Posted By: Zhenjiang Coaxial Communication Technoloy Co.,Ltd

• Phone: 86-18952813260

• Address: Room 501, building 24, Mingfa Splendid Town, No. 123, Zhaosheng Road, Zhenjiang New District, Zhenjiang , Jiangsu , China

• Email:

• Website: http://www.coaxialcommunication.com

• Business Description: Founded in 2002 ,Zhenjiang Coaxial Communication Technology Co.,Ltd is one of the professional manufacturers dedicating to design and make RF coaxial connectors ,RF cable assembly , Microwave components and installation accessories of mobile base stations.

  Our products are widely used by Telecom Equipment manufacturer, Telecom operator, antenna manufacturer and Broadcasting equipment manufacturer.

  They are sold to Asia , North America, middle east, Australia, south America and European markets.

  We have strict quality guarantee system and advanced integrated testing equipments which guarantee us to provide excellent products for customers .

  Our products range focus on as follows:

  RF coaxial connectors and adaptor series :

  SMA ,SMB,SMC, SMZ(BT43,HDC) ,MCX, MMCX, QMA and QN.

  1.0/2.3,1.6/5.6,F,BN C ,TNC ,FME,TS-9,CRC9,UHF(PL259) ,Mini UHF

  MHV and SHV.

  N type,7/16 DIN ,4.1/9.5,4.3/10 .

  EIA flange connector(7/8”,1-5/8” ,and 3-1/8” )

  High Frequency Series: SMP,1.85mm,2.4mm,2 .

  92mm and 3.5mm.

  Different type RF coaxial adaptor.

  2 - RF coaxial Cable assembly (Jumper Cable)

  RG Series coaxial cable assembly;

  LMR Series coaxial cable assembly;

  Foam Corrugated tube coaxial cable assembly;

  JS(D-FB) Series Coaxial cable assembly;

  Miniature Coaxial Cable(0.81mm,1.13mm,1.32m m,1.37mm) cable assembly;
