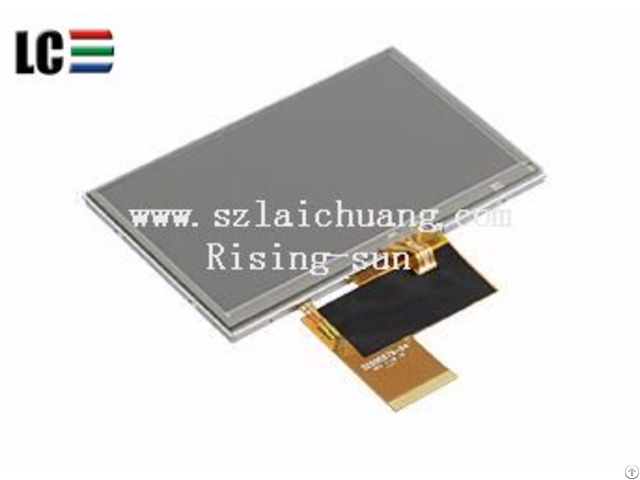

At043tn24 V 7 Lcd Touch Screen 4 3 Inch Innolux Tft - China

Innolux 4.3" lcd at043tn24 v.

7 with touch panel

productor innolux

model at043tn24-v.

7

size 4.3"

resolution 480*272

resolution name wqvga

display scale 16: 9

pixel arrangement rgb

pixel pitch 0.066*0.198 mm

panel composition lcd

echnology a-si tft-lcd

display mode tn, nw, transmissive

luminance 400 nits

contrast ratio 500: 1

color 16.7m

color saturation 50%ntsc(cie1931)

response 10/15 (tr/td) ms

viewing angle 50/70/70/70

the best view 6 o'clock

white field chroma x: 0.310; y: 0.330

white field dynamic 1.33 (9 points)

reverse scan no

the kind of singnal parallel

interface parallel

singnal interface definition drgb-40p1c8b-080a

drive-screen voltage 3.3v

input current 17ma

brand of singnal interface fpc

pitch of singnal interface 0.5 mm

quantity of singnal interface 1 pcs

pin of singnal interface 40 pins

operation temperature -20 °c ~ 70 °c

storage temperature -30°c ~ 80°c

surface technology

active area 95.04*53.856 mm

display area 98.7*57.5

outline 105.50* 67.20*4.05 mm

backlight wled

touch panel yes
