Air Quality Sensor Module Am4100 - China

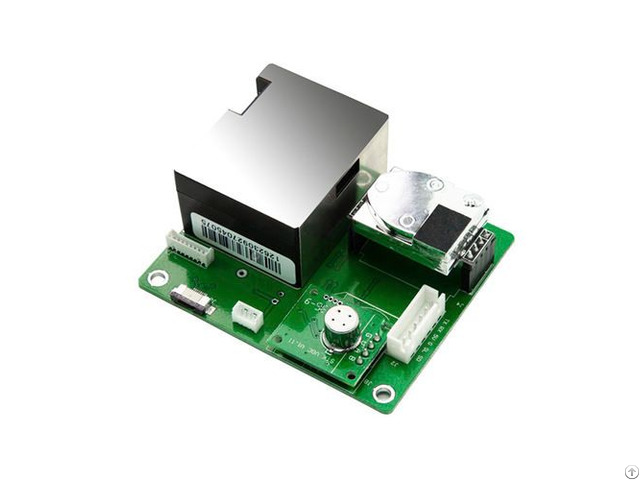

Introduction AM4100 series are integrated air quality sensor module and is able to detect indoor PM2.5 concentration, CO2 concentration, TVOC/HCHO, RH&T and output real-time measurement data.

CUSTOMIZED (OEM/ODM) AIR QUALITY SENSOR MODULES CAN BE ALSO OFFERED.

Features ● With built-in laser particle sensor module ( real-time PM2.5 digital display), miniature and high-accuracy NDIR CO2 sensor module, electrochemical HCHO/Semiconducting TVOC sensor module (digital display) and RH&T sensor module for optional

● Four types of measuring mode for PM laser particle sensor module: single, timing, continuous and dynamic.

In dynamic measuring mode, lifespan can be prolonged to the highest degree ● The NDIR CO2 sensor module is with high accuracy, great stability, automatic calibration program (no need of manual maintenance) ●With voltage regulator design and anti-static ABS lead-free injection molding shell Applications ● IAQ monitor

● Air purifier

● Ventilation system

● Air conditioner with purifying function Specifications 1 - Measurement range: CO2 : 400-2000ppm; PM2.5: 0-1000μg/m³

HCHO: 0-3ppm/VOC: 0-3level

Temp: -10℃-50℃, RH: 0-95%RH

2 - Working temperature: -10 ℃-50℃

3 - Working humidity: 0-80% RH (non-condensing)

4 - Standby consumption: ≤1.0W 5 - Signal output: UART-TTL, I²C, PWM (optional)
