Ring Main Unit - China

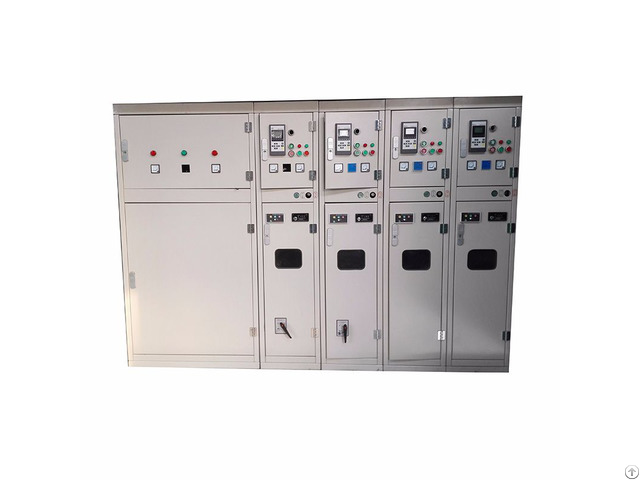

Product Overview: XGN port -12 indoor high-voltage AC vacuum switch cabinet 3.6-12kV, three-phase AC 50Hz, single busbar and single busbar system of complete sets of power distribution devices.

Mainly used for industrial and mining enterprises and power distribution system and the secondary substation by the power, power transmission, reactive power automatic compensation devices and large high-voltage motor starting, the implementation of control and protection.

For monitoring purposes.

Can also be used for outdoor box-type substation high-side protection, urban cable distribution with outdoor high-voltage cable distribution box and so on.

The switch equipment to meet IEC298, GB3906-2006 and other standards.

The switch and the main electrical components for the integration of cross-block, the external activities of the connection parts using labyrinth insulation structure, inter-phase conductive parts for the solid insulation package.

Main parts of the original insulation of the exposed surface can be coated according to user requirements semiconductor shield, so that the ground to eliminate static induction.

Therefore, the use of security greatly improved.

High-voltage circuit breaker operating mechanism, can be used spring energy storage operating mechanism, you can also use permanent magnet operating mechanism, mechanical life of 10, 000 times, according to user requirements, such as frequent short-circuit fault, and the need for frequent operation of the special field, The number of mechanical life can reach 20, 000 times.

Truly become a switch without the need for maintenance equipment.

All of its running data and equipment status to achieve a remote monitoring and monitoring, recording equipment running in the dynamic data, you can unattended automatic record of running data, and according to the need to print the running file.

Is a superior performance of the distribution device.

The complete sets of equipment factory has been in accordance with the user's system diagram of a system requirements, the cabinet arranged in a row in combination, the circuit between the bus and the cabinet has been connected, and fixed in the channel base of the welding, the user only Need to complete the equipment shipped to the installation site, in place after connecting the control cable and the incoming and outgoing power cable, you can put into normal operation, no need to rearrange the assembly work.

The installation distance of the equipment from the wall of 600 mm, easy to maintain and detect the operator.
