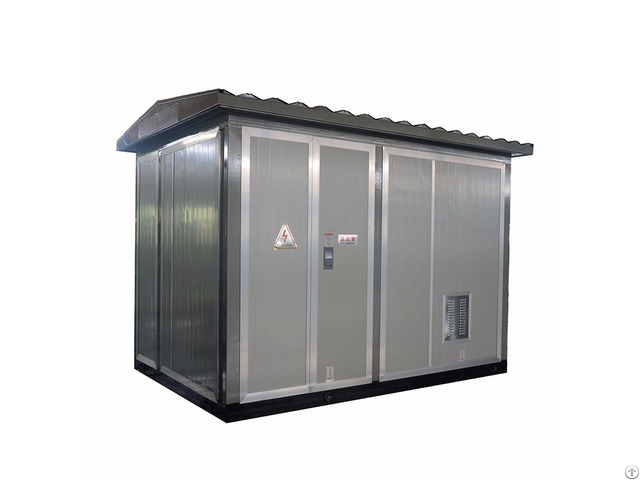

ZBW- □ box type substation (10KV)

ZBW series of modular substation is the high-voltage electrical equipment, transformers, low-voltage electrical equipment into a compact combination of power distribution devices commonly known as European box change.

This product is suitable for 10KV (6KV) AC 50Hz substation, is the high-voltage switchgear, transformers, low-voltage switchgear into one of the power distribution device.

With a small footprint, easy to install, safe and reliable, easy maintenance advantages.

Can directly access the load, a time to install the skills to achieve power transmission purposes.

Multiple combinations can constitute a different power supply, it is widely used in residential areas, high-rise buildings, tourist attractions, highways, industrial and mining enterprises, oilfield terminals, township rural network and other places.

Model Description

Z B W □ □ -10kv

│ │ │ │ │ └ ─ ─ ─ ─ ─ voltage level

│ │ │ │ └───── Variable Pressure Capacity (KVA)

│ │ │ └ ─ ─ ─ ─ ─ ─ ─ ─ design serial number

│ │ └ ─ ─ ─ ─ ─ ─ ─ ─ outdoor

│ └ ─ ─ ─ ─ ─ ─ ─ ─ substation

└ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ combination of type Use environmental conditions

1 - Elevation: ≤1000m.

2 - Wind speed: ≤ 34m / s (not more than 700Pa).

3 - Ambient temperature: maximum temperature +40 ℃, the minimum temperature of -35 ℃.

4 - Relative humidity: daily average of not more than 95%, the monthly average of not more than 95%.

5 - Shock: the level of acceleration is not greater than 0.4m / s2, vertical acceleration 0.15m / s2.

6 - Installation site inclination: not more than 3 °.

7 - Installed in places where there is no fire, explosion hazard, severe contamination, chemical corrosion and severe vibration.

Features:

1 - Has a strong set, small size, compact structure, safe and reliable operation, easy maintenance, and removable features

2 - Compact structure, small size, covers an area of ​​only about 3.5 square meters, greatly reducing the construction costs.

3 - Because high-voltage control protection device is located in the transformer box body, no live exposed parts, safe and reliable.

With the excellent performance of energy-saving transformers, energy-saving effect is good.

4 - Because the transformer heat dissipation surface in the outdoor natural cooling state, heat dissipation conditions, so the general box-type transformer capacity up to 1600kVA and below.

5 - Substation structure was "head" or "goods" shaped layout.

6 - Product shell material using aluminum alloy plate, stainless steel plate, composite board, glass fiber reinforced cement board.

Can be produced according to the user.

7 - Substation base for galvanized steel or cement production, corrosion resistance, with sufficient mechanical strength.

8 - Cabinet roof with double-layer structure, with good insulation, radiation and ventilation effects.

9 - Substation substation separated by the formation of independent small room, each room are equipped with lighting facilities The top of the transformer room with automatic exhaust device to adjust the transformer room temperature.
