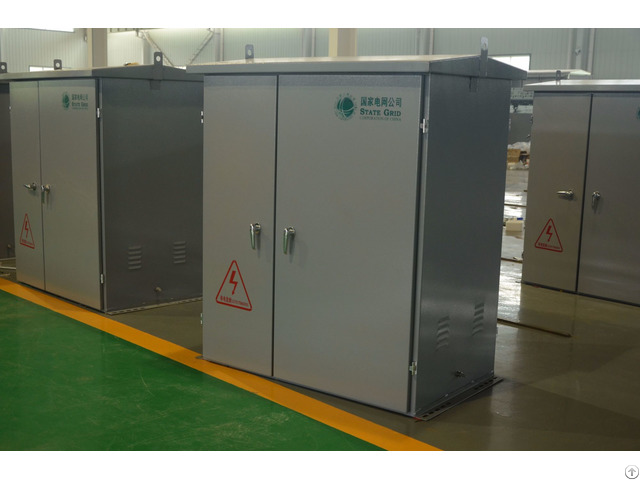

Power Distribution Cabinet - China

product description:

Low-voltage integrated reactive power distribution equipment (hereinafter referred to as JP integrated distribution box), collecting energy distribution, low-voltage reactive power automatic compensation, energy metering, automatic distribution of variable parameters as one; on the low-voltage load uninterrupted monitoring and recording, Rated current, the size of the three-phase or phase-wide full-range automatic tracking compensation reactive power, suitable for outdoor use under normal conditions, the rated insulation voltage of 550V, rated operating voltage AC 400V, rated current to 125A, frequency 50Hz, 50KVA-630KVA Of the distribution transformers, transformer neutral point of direct contact with, suitable for urban and rural power grids.

Technical Parameters:

Rated voltage: 380VAC 3 ~; Rated insulation voltage: 690VAC 3 ~;

Rated frequency: 50HZ or 60HZ;

Compensation: three-phase compensation and single-phase compensation combined.

Compensation capacity: 420kvar ~ 60kvar.

Compensation: loop switching, coding switching, fuzzy control automatic switching.

The fastest response time: ≤ 20ms

Cabinet height: 2000mm, 2200mm;

Width: 600, 800, 1000, 1200mm;

Thickness: 600, 800, 1000mm;

Protection class: IP44 - Product Features:

1, The box is made of stainless steel plate or cold plate bending welding, the box has a common movable plate, mounting plate can be fixed on it and can do up and down and before and after adjustment, so the original installation is extremely flexible.

2, before and after the cabinet door can be installed on the pole or floor installation and out of line flexibility, and in front and at the same time for maintenance.

Bottom and side of the box there are threading holes, and a sealed rubber from the sealing effect.

Ventilation holes are provided on the sides of the cabinet for installation in wet areas.

3, JP integrated distribution box is the factory production of a collection of energy distribution, metering, protection, control, reactive power compensation in one of the new integrated control box.
