Medium Voltage Switchgear Power Distribution Panel - China

Product overview

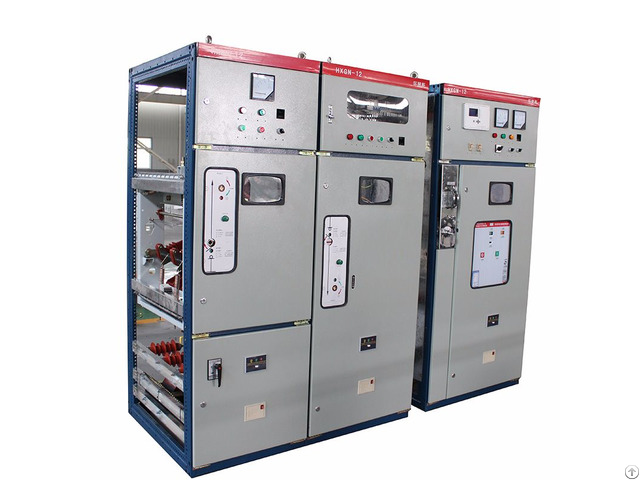

HXGN - 12 type box type stationary metal enclosed switchgear (hereinafter referred to as ring network cabinet) is 12 kv rated voltage, rated frequency 50 hz ac high voltage complete sets of electrical equipment, mainly used for three-phase ac ring network, terminal distribution network and industrial electrical equipment, accept, distribution, electricity and other role, it is also suitable for loading box transformer substation.

Model definition

Environmental conditions

1 - Environmental temperature limit + 40 °, the lower limit to 25 °;

The altitude is no more than 10000m.

The average air temperature is less than 95%, the mean is not greater than 90 percent, and the daily water vapor average is not greater than 2.2 x10 to the third Mpa, and the average monthly average is not greater than 1.8 x10 to the third Mpa.

The surrounding air is not polluted by corrosion or flammable gases, water vapour, etc.

There's no regular shock.

Main technical parameter

Product features

Adopt the whole assembly structure, the light and beautiful, can assemble the installation arbitrarily, facilitate the infinite extension to extend.

It can be equipped with SF6 load switch, combined electrical appliance, also can be equipped with vacuum load switch, combinatorial appliance, and the installation size is completely consistent.

Small volume, no maintenance, three-phase interconnected structure, with obvious isolation fracture.

Equipped with load switch and combination electrical appliance, the method is flexible, can be left and right side outfit, formal loading, reverse loading.

Manual and electric operation, and have remote control function.

It has perfect mechanical linkage and interlocking device, which fully achieves the "five defense" function.

The color is used to protect the door of the insulated valve, to protect the safety of the person.

The color is maintained by positive operation and reliable wall installation.

The face door is equipped with observation window, it is very clear to observe the element working condition in the cabinet.
