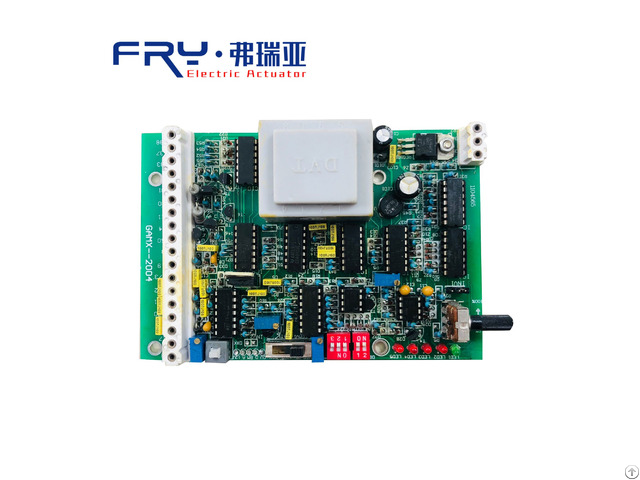

Gamk 2004 Position Locator Control Board - China

(1) Automatic control

1 - Input signal: 4-20mA

2 - Output signal: 4-20mA

3 - Automatic control: Standard: 4mA valve close, 20mA valve open.

Reverse direction: 4mA valve open, 20mA valve close.

4 - Interrupt persist: standard：when loss signal, the actuator maintain original position.

Non-standard: when loss signal, the actuator close.

Non-standard: when loss signal, the actuator open.

5 - Dead zone: Through the dead zone potentiometer P3 to adjust.

Dead zone range: 0-3% mean 0-480μA

6 - The machine running automatically: the machine running automatically makes the locator simulate a 4-20mA input signal, making actuator running.

7 - 0% adjustment: locator 0%, makes the actuator receive 4mA close command.

8 - 100% adjustment: locator100%, makes the actuator receive 20mA open command.

(2) Remote control: 1 - The remote control for passive dry contact control, In the case of dry contact control, it can make the actuator receive the pulse remote command.

Complete valve opening and closing.

Remote control prior to the automatic control, when controller in remote position, automatic control were blocked, don't work.

2 - The operation of the actuator

Standard form: Actuators for output shaft clockwise to open it.

Through the dial switch can change control(Change the direction of motor rotation), Make the actuator counterclockwise to open it, Change the limit switch and torque switch direction at the same time.

3 - The electric brake configuration

One phase power(220V AC) Configure electric braking.

Three phase power(380V AC)make the plate electric braking function doesn't work through the dial switch, Actuator electric braking performed by external circuit.

(3)LED indication:

LEDI (green) actuator on LED2 (red) actuator off

LED3 (red) loses 4-20mA signal LED4 (red) over torque switch action

LED5 (red) electric brake works, the brake light flashes instantly
