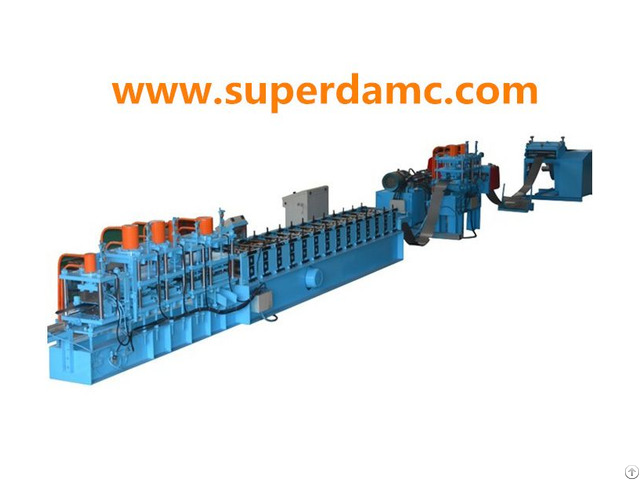

Automatic Electric Box Roll Forming Machine For Distribution Enclosure - China

Roll forming machine for production power distribution box, including distribution panel forming machine, panel box bending.

Ⅰ, Metal Forming machine for distribution box panel 1, Technical parameters (Item: YX20-150/200/250/30 0/350) No.

ITEM PARAMETER REMARK

1 MATERIAL Type Cold-rolled strip steel, galvanized sheet T.

(mm) 0.8-1.2mm Yield Strength (Mpa) Q235 2 Forming product Width 150, 200, 250, 300, 350mm 3 Forming speed (m/min) 2-8m Including hole

4 Forming main power (KW) 7.5 KW FYR

5 Hydraulic power (KW) 18.5 KW FYR

6 Bending power (KW) 3 KW FYR

7 Voltage AC380V, 50Hz, 3P Ⅱ, Distribution box production line process (A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack (Ⅴ)Main Forming machines (for panel width 150, 200, 250, 300, 350mm ) 5.1 Forming Roller：20 stations, and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.

18mm, A3 steel Heavy duty 。

5.3 Rolling speeding: 2-8 m/min。 5.4 Roller material：GCr15, overall quenching, hardness HRC56-62 ℃.

5.5 Motor power：7.5KW。 5.6 Main Roller ：￠75mm, 45 #。

5.7 Equipment base: 45 # H type using welded steel plate.

5.8 Transmission: chain drive.

5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety.

And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
