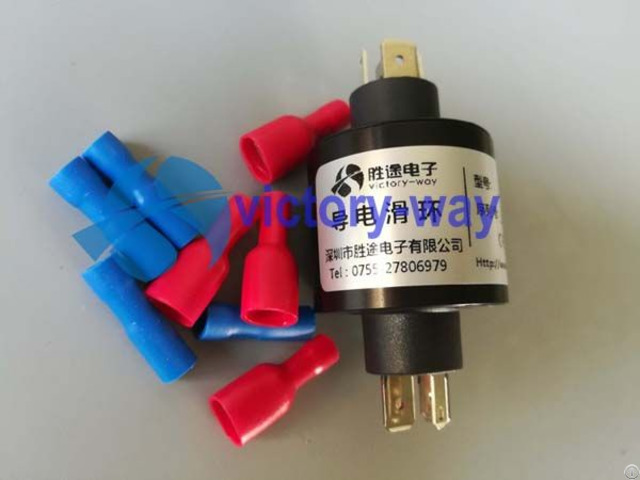

Three Circuits High Current Slip Ring Plug Straightly - China

Plug straightly slip ring is also known as connect directly slip ring or plug-in slip ring.

It is also called thermocouple slip ring or thermal resistance slip ring according to practical use.

The H series slip rings are compact, cost effective, mercury free, designed for industrial manufacturing.

Standard H3 has three rings, each is able to carry 7 amps.

H series slip rings overcome mercury slip ring's disadvantages of not environmental protection and use on environment-demanding.

Advanced technology and reliable structure, maximum utilization of contact materials realize the highest performance but low cost.

Standard terminals fit to quickly install.

This product is fully compatible with Moog P4 slip ring and can also replace mercury slip ring M330, A3H, etc.

They are best applicable in the food production industry and packaging industry.

A.

)Outline:

B.

)Specification:

Voltage: 240V AC/DC

Current Rating: 7A/Ring

Speed: 400PRM

Insulation Resistance: 200MΩ@500VDC

Dielectric Strength: AC 600V@60Hz, 60S

Electrical Noise: 10 milliohms MAX @5rpm, 50milliamps, DC

Contact Material: Precious metal

Operate Temp: -20℃～+80℃

Storage Temp: -30℃～+85℃ C.

)Feature:

● Mercury free;

● Reliable & rotational connections for power, signal and data transmission;

● Speeds up to 400rpm;

● Fast mounting.

D.

)Application:

● Rotary tables and rotary sensors;

● Robots;

● Test equipment;

● Exhibit / display equipment;

● Heated rollers;

● Food manufacturing machine;

● Automation equipment;

● Packaging machine.

E.

)Option:

● Higher voltage and current;

● Higher speed;

● Wider range of temperature;

● Higher protection class;

● Layout & size of terminals can be customized;

● Flange for installation.
