Spiral Vibration Damper - China

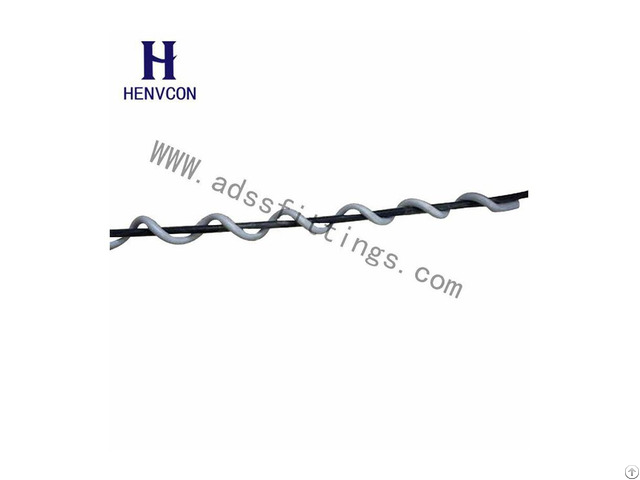

Spiral Vibration Damper

PVC spiral vibration reducer damper

Preformed Cable Fittings

1 - Usage and characteristics

Spiral Vibration Damper is made of engineering plastic which is high strength, aging resistance and high elastic;it will not cause any mechanical damage to the optical fiber caber.

Spiral Vibration Damper is widely used in ADSS cable installation.

Each Spiral Vibration Damper is composed of a short part of grip section and a long vibration attenuation section.

the grip section can affective close upon the cable to make sure the spiral vibration damper is firmly fixed on the cable; the vibration attenuation section create damping effect through mutual crash with the cable, to consume the cable vibration energy, so that the Aeolian vibration on the cable can be weaken.

2 - Product Specification

Model Dia.

Range(mm) Length(mm) Weight(kg)

FTL 1170 130 8.30-11.70 1300 0.28

FTL 1430 135 11.71-14.30 1350 0.30

FTL 1930 167 14.31-19.30 1670 0.66

Note: Recommand Allocation number of spiral vibration damper

Span(m) Recommend Qty/Span

﹤100 0

100-250 2

250-400 4

400-800 6

800-1000 8

3 - Packing /shipping/ Terms of Payment

Packaging: preformed guy grip according to the concrete product cartons, wooden cases (as customer's requirements)Delivery: usually, it will take about two weeks for the order of 10000 sets for productionTerms of Payment : By T/T

4 - The product is also named as follows:

PVC vibration damper
