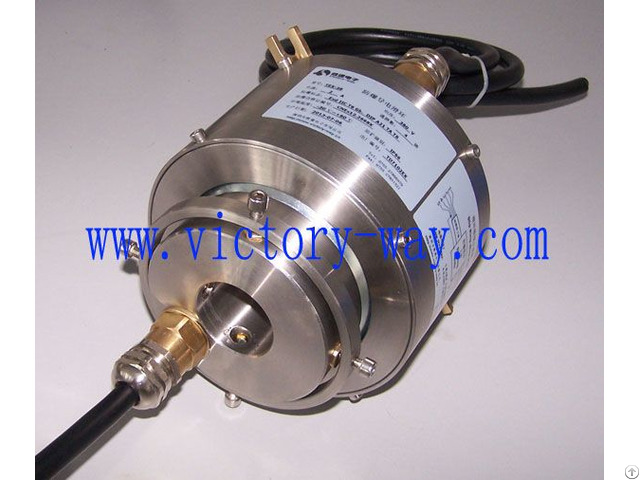

Slip Ring In Waste Water Processing System - China

Explosion-proof slip ring has more safety and higher reliability, designed for use in the condition which is easy to explode, such as in waste water processing system, oil platform, explosive material packing machine, agro-product processing equipment, coal mine and spray finishing, etc.

Slip rings pass the electricity by rub between the brushes and rings, so it is not possible to prevent the spark in theory.

Normal slip ring only pays attention to its electric property, but less to protection.

So it is very dangerous to use normal slip rings in the condition which is easy to explode.

Victory-way knows this, and we know the philosophy of the explosion and its protective measures.

We design the explosion-proof conductive slip ring, which can be used in explosive gas atmospheres and explosive dust environment, with protection class IP66 - The slip rings passed EX test and got the certificate of conformity from CNEX (Nanyang), the Cer.

No.

: CNEx12.2698X.

Marking: EX d IIC T6 Gb, DIP A21 Ta, T6 - A.

Feature: EXd mark, fit for IIC, IIB & IIA; Safest Temperature range, reaches T6 class, fit for T1~T6 working condition; Working condition： -30℃～60℃ ; Protect class IP66, IP68 for option; Can be used in explosive gas and or explosive dust atmospheres (Zone 1 and Zone 2, Zone 21, Zone 22); EPL Class : Gb; Explosion marking: Ex d IIC T6 Gb, DIP A21 TA, T6 (equate to Ex tb IIIC, T6); Stainless steel body has good environmental suitability; Weak signal is viable; Power & Signal can be combined to deliver in one body; No need to maintain.

B.

Specification: 1．Speed：300 RPM；

2．Voltage：380 VAC/DC；

3．Working Temperature：-30 ℃～+60 ℃；

4．Current： 5A(signal)+ 10A(Power)；

5．Dielectric Strength： 600 V DC @ 50Hz；

6．Insulation Resistance：>=500 MΩ @ 600 V AC；

7．Electrical Noise：less than 30 mΩ；

9 - Protection class：IP66;

10 - Ex marking：Exd IIC T6 Gb, DIP A21 TA T6;

11 - Body materials：SUS304 - C.

Typical Application: Oil platform； Explosion-proof packing machine； Spraying equipment； Chemical equipment； Farming industry; Fit for explosive Gas and or Explosive Dust atmospheres.

D.

Option： Higher voltage and current capacity; Higher speed; Wider range of temperature; Higher protection class; Style of exits for lead wires; Flanges for installation.
